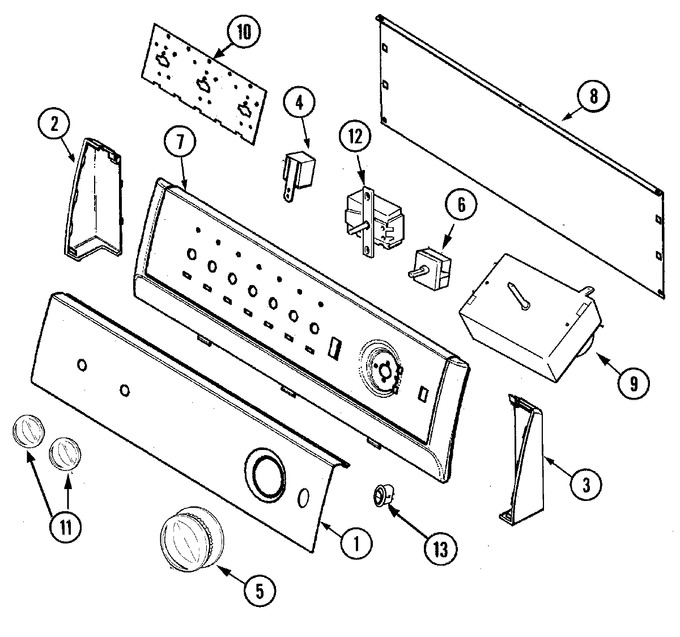

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001549		Panel, Control	10	Appelez-nous	-
2	21001519		Endcap (wht-lt)	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
3	21001523		Endcap (wht-rt)	10	Appelez-nous	-
4	53-1639		Buzzer Assy.	10	Appelez-nous	-
5	WP37001184		Knob/skirt, Timer   (Replaces: 31001550)	10		Immediately	$ 51.24
6	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
6	31001190		Switch, Two Position Rotary	10			$ 52.56
7	21002005		Frame, Control Panel (wht)	10	Appelez-nous	-
8	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
9	31001484		Resistor Asm (domestic/timer)	10			$ 5.84
9	WP31001513		Timer (120v/60hz)   (Replaces: 31001513)	10			$ 340.49
9	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
10	31001193		Pad, Shield	10	Appelez-nous	-
11	21001954		Knob, Selector (wht)	10	Appelez-nous	-
12	53-4395		Switch, Temperature	15	Appelez-nous	-
12	31001483		Resistor Asm Temperature	10			$ 6.41
12	31001704		Resistor Asm Temperature	15	Appelez-nous	-
12	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
12	31001447		Switch, Temperature	10	Appelez-nous	-
13	WP74010226		Switch, Rocker (wht)   (Replaces: 22003977)	10			$ 86.45
14	31001488		Harness, Wire	10	Appelez-nous	-
14	21001980		Lead Assembly (ground)	10	Appelez-nous	-
14	31001557		Lead Assembly (signal)	10	Appelez-nous	-
14	31001559		Lead Assembly (buzzer)	10	Appelez-nous	-
14	53-4453		Harness, Wiring	15	Appelez-nous	-
