Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3196164 Screw   (Replaces: 25-7759) 10 In-Stock Immediately $ 7.82

2 53-1249 Baffle, White 10 Appelez-nous -
3 31001581 Bulkhead With Seal 10 Appelez-nous -
4 WP25-7854 Ring, Retaining   (Replaces: 25-7854) 10 Special Order $ 10.68

5 25-7814 Washer 10 Special Order $ 5.33

6 53-1250 Cylinder (w/baffle) 10 Appelez-nous -
7 341241 Belt, Cylinder   (Replaces: 31531589) 10 In-Stock Immediately $ 16.34

8 WP31001747 Seal Assembly (rear)   (Replaces: 31001548) 10 Special Order $ 30.87

9 WP3351614 Screw   (Replaces: 25-7101) 10 In-Stock Immediately $ 6.26

10 WP53-0197 Support Assy.-cylinder Rear   (Replaces: 53-0197) 10 Special Order $ 81.21

11 31001583 Spacer, Roller 10 Special Order $ 5.27

12 31001096 Roller (rear) 10 Special Order $ 50.12


    View Diagram in Separate Window     Print Icon   Print Part List

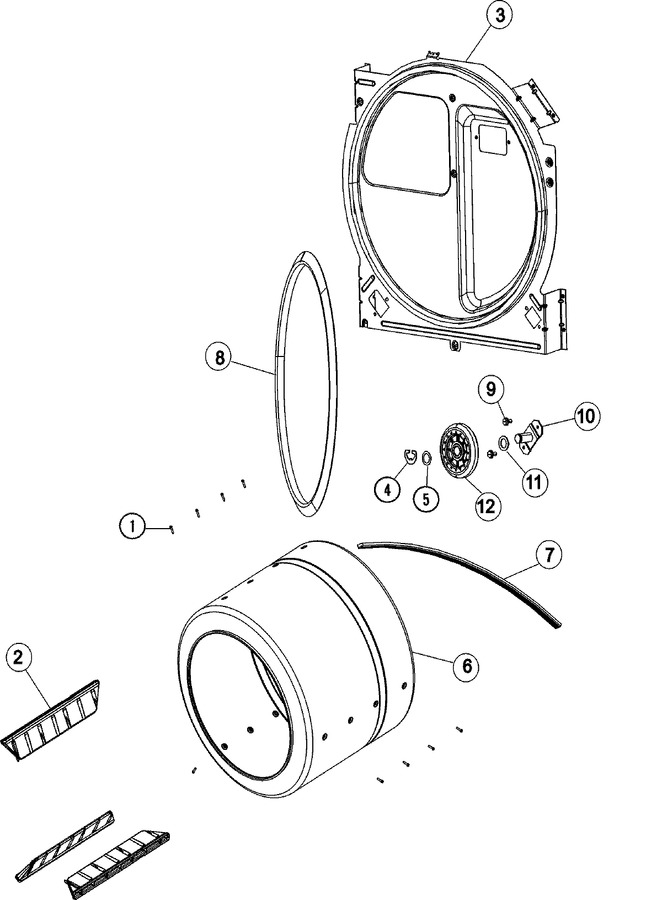

Diagram for PYG2300AGW
