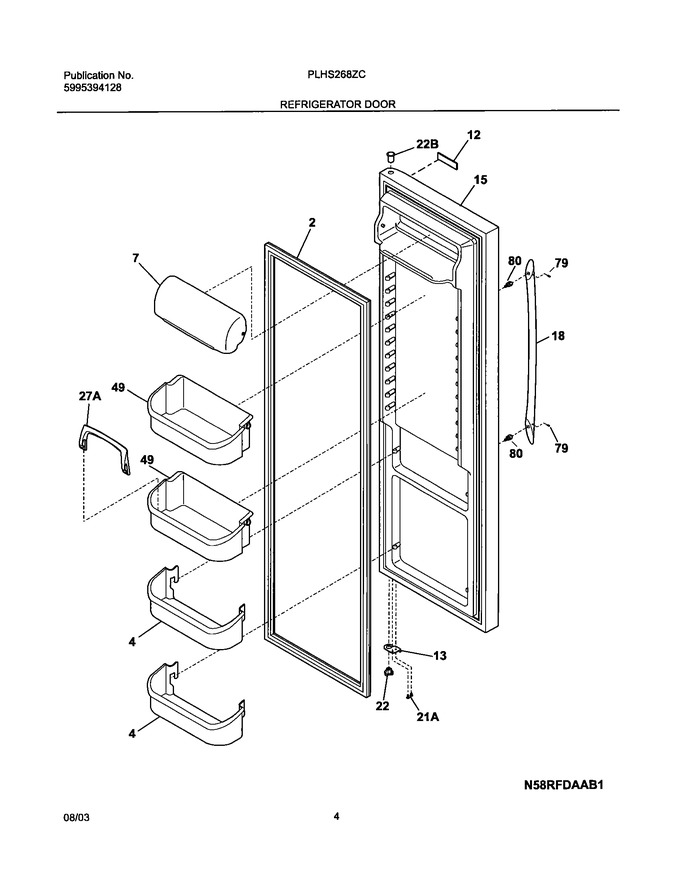

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Gasket-refr Door,black ,magnetic   (Replaces: 240390605)			Immediately	$ 225.62
4	240323006		Bin-door,2 Ltr		Appelez-nous	-
7	240326209		Door-dairy,aeg Aqua		Appelez-nous	-
12	240558801		Nameplate,aluminum				$ 23.00
13	240581905		Door Stop,black ,ref				$ 60.25
15	240451984		Door-refr,stainless ,complete Assy		Appelez-nous	-
18	240536801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
49	240356408		Bin-door,gallon		Appelez-nous	-
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 18.60
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598401)				$ 11.88
22B	240328403		Bearing-hinge,upper				$ 14.85
27A	240396105		Retainer,tall Bottle		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
