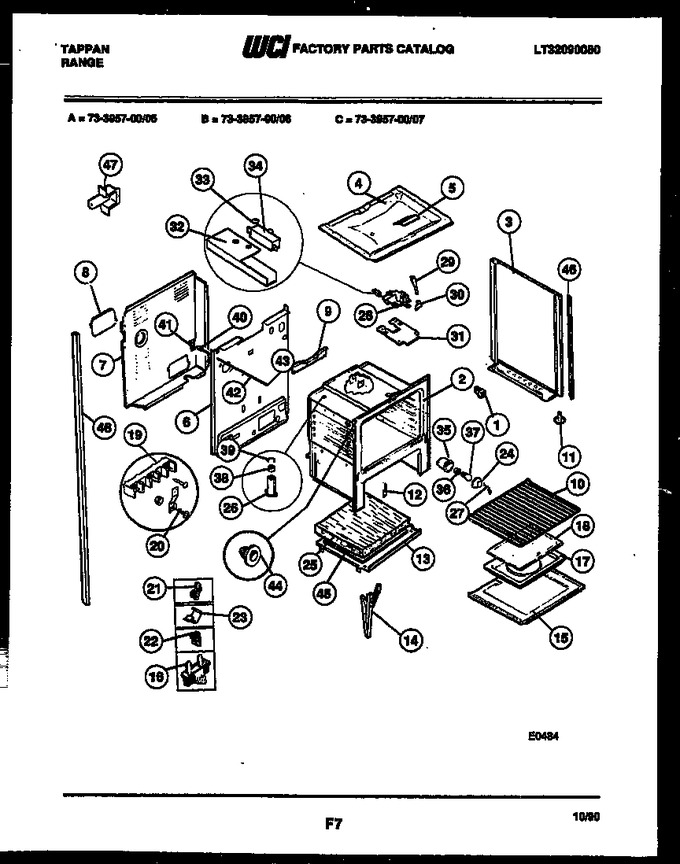

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	3205626		Pnl-bodyside Lh-wheat		Appelez-nous	-
3	3205627		Pnl-bodyside Rh-wheat		Appelez-nous	-
3	3205624		Pnl-bodyside Rh-almond		Appelez-nous	-
3	3205623		Pnl-bodyside Rh-white		Appelez-nous	-
3	3205621		Pnl-bodyside Lh-almond		Appelez-nous	-
3	3205620		Pnl-bodyside Lh-white		Appelez-nous	-
4	08067749		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203406		Shield, Lower Wall		Appelez-nous	-
8	3203405		Cover-lower Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	5303131973		Rack, Oven (2)		Appelez-nous	-
11	5303203397		Screw-level (4)				$ 14.49
12	3131570		Cover-hinge Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	5303051414		Chan-door Hinge (2)		Appelez-nous	-
15	08067745		Bottom-oven		Appelez-nous	-
16	5303051385		Fuse-thermo Cutout		Appelez-nous	-
17	5303013568		Broiler Pan		Appelez-nous	-
18	5303131356		Insert-broiler Pan		Appelez-nous	-
19	5303161116		Terminal Block		Appelez-nous	-
20	08011708		Ground Strap		Appelez-nous	-
21	08067754		Clip-thermo Bulb (2)		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	08067765		Glass-oven Light Lens		Appelez-nous	-
25	3200847		Insulation, Lower		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3131104		Wire, Glass Retainer		Appelez-nous	-
28	3017396		Latch-door		Appelez-nous	-
29	5303131357		Handle-latch				$ 37.33
30	5308010597		Knob, Latch		Appelez-nous	-
31	3051413		Shield-latch		Appelez-nous	-
32	3131593		Shield-bi Mtl Latch		Appelez-nous	-
33	08067776		Fastener-push On (3)		Appelez-nous	-
34	3131672		Switch, Latching		Appelez-nous	-
35	3131363		Tube, Oven Light		Appelez-nous	-
36	3014073		Socket-oven Light		Appelez-nous	-
37	40A15		Light-bulb-oven   (Replaces: 5303013071)			Immediately	$ 1.98
38	08067810		Filter-catalyst		Appelez-nous	-
39	612T079P01		Retainer, Catalyst		Appelez-nous	-
40	5303202622		Switch, Door		Appelez-nous	-
41	5303131289		Bracket-light Switch		Appelez-nous	-
42	3051495		Rod, Light		Appelez-nous	-
43	08067758		Cover, Rod				$ 2.31
44	08067750		Button-remote Light Switch		Appelez-nous	-
45	3200848		Shield,heat ,lower		Appelez-nous	-
46	3051723		Tube-post Lh		Appelez-nous	-
46	3051724		Tube-post Rh		Appelez-nous	-
27A	3200833		Insulation-wrap (non-illustrated)		Appelez-nous	-
27B	3131303		Insulation, Back (non-illustrated)		Appelez-nous	-
27C	3131903		Bumper				$ 55.36
27D	3131143		Screw-hinge Mtg (6) (non-illustrated)		Appelez-nous	-
27E	08067783		Nut, Hex, Brass (6) (non-illustrated)		Appelez-nous	-
30A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
45A	3131305		Insulation, Touch (non-illustrated)		Appelez-nous	-
45B	3200834		Shield-heat Bodyside (2) (non-illustrated)		Appelez-nous	-
45C	3200846		Fastener-edge Mount (2) (non-illustrated)		Appelez-nous	-
46A	3934056		Anti-tip Kit (non-illustrated)		Appelez-nous	-
