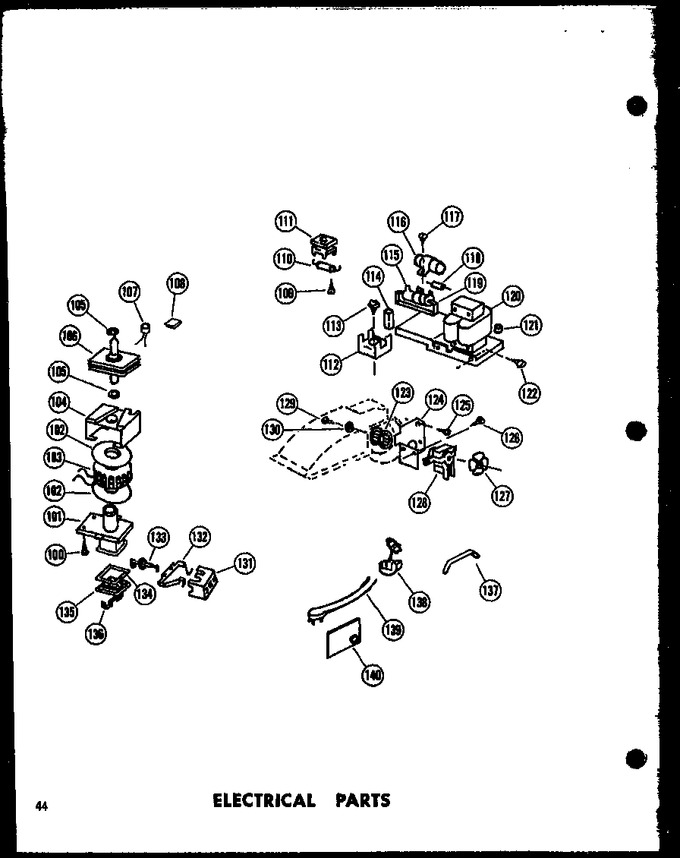

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	M0216517		Screw		Appelez-nous	-
101	B5663701		Housing Plate Assy		Appelez-nous	-
102	M0274028		Washer		Appelez-nous	-
103	M0370602		Magnet Coil		Appelez-nous	-
104	C3596101		Support		Appelez-nous	-
105	B5621901		Washer		Appelez-nous	-
106	M0371101		Magnetron		Appelez-nous	-
107	M0370403		Thermal Prot		Appelez-nous	-
108	M0115802		Clip		Appelez-nous	-
109	M0216517		Screw		Appelez-nous	-
110	M0305007		Resistor, Relay A		Appelez-nous	-
111	C3656303		Relay A		Appelez-nous	-
112	A3165201		Rectifier-bridge K		Appelez-nous	-
113	M0218116		Screw		Appelez-nous	-
114	M0325301		Insulator, Term. K		Appelez-nous	-
115	M0305101		Resistor,adj		Appelez-nous	-
116	M0300201		Capacitor		Appelez-nous	-
117	M0218116		Screw		Appelez-nous	-
118	M0305201		Resistor		Appelez-nous	-
119	A3165001		Brkt-adj-resistor		Appelez-nous	-
120	C3656001		Transformer K		Appelez-nous	-
121	WP487939		Nut   (Replaces: M0282015)				$ 6.95
122	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
123	B5660901		Blower Wheel		Appelez-nous	-
124	B5657501		Bracket,motor Mount		Appelez-nous	-
125	M0230017		Screw,tc		Appelez-nous	-
126	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
127	B5661801		Fan Blade		Appelez-nous	-
128	M0306701		Motor		Appelez-nous	-
129	M0202642		Screw		Appelez-nous	-
130	M0272605		Washer		Appelez-nous	-
131	B5656001		Shield Hv K		Appelez-nous	-
132	B5655902		Clip K		Appelez-nous	-
133	M0281901		Hex Nut		Appelez-nous	-
133	A3148801		Capacitor K		Appelez-nous	-
134	A3148701		Gasket		Appelez-nous	-
135	B5647901		Cover Cap Box K		Appelez-nous	-
136	A3145401		Bale Strap K		Appelez-nous	-
137	A3164702		Retainer Bar		Appelez-nous	-
138	M0370001		Strain Relief		Appelez-nous	-
139	B5602302		Power Cord		Appelez-nous	-
140	B5660601		Back Panel		Appelez-nous	-
