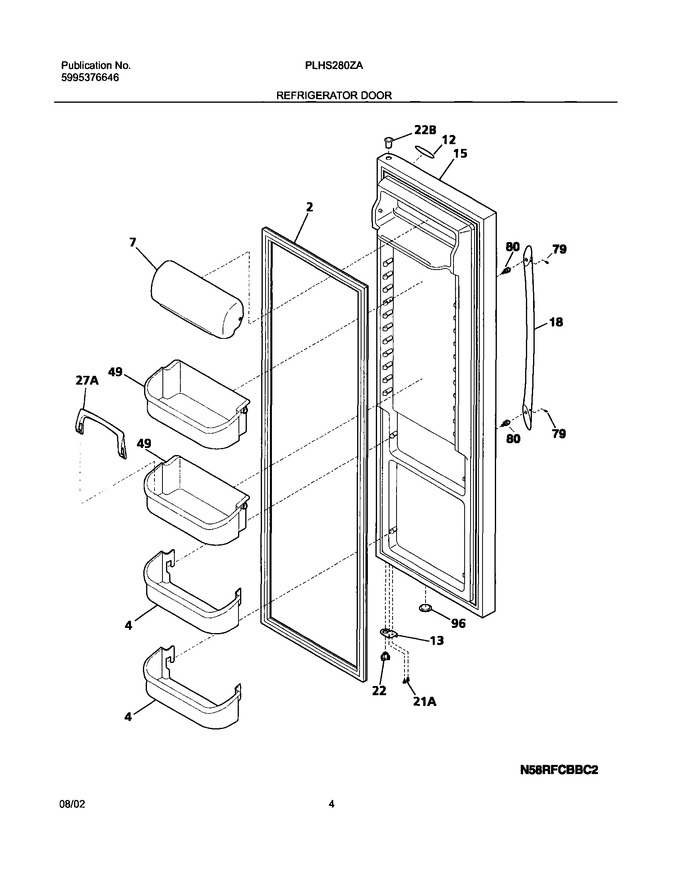

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Gasket-refr Door,black ,magnetic   (Replaces: 240390605)			Immediately	$ 225.62
4	240323006		Bin-door,2 Ltr		Appelez-nous	-
7	240326209		Door-dairy,aeg Aqua		Appelez-nous	-
12	240449704		Nameplate,satin Nickel				$ 72.54
13	5303918455		Door Stop,black,ref   (Replaces: 240537105)				$ 142.04
15	240451941		Door-refr,stainless Steel ,complete Assy		Appelez-nous	-
18	240536801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
49	240356402		Bin-door,gallon   (Replaces: 240430307)			Immediately	$ 106.83
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 18.60
96	240345506		Plug,door Foam Hole ,black				$ 51.87
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22B	240328403		Bearing-hinge,upper				$ 14.85
27A	240396105		Retainer,tall Bottle		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
