SELECT A DIAGRAM

01 - Door & Bezel


02 - Electrical


03 - Interior


04 - Interior

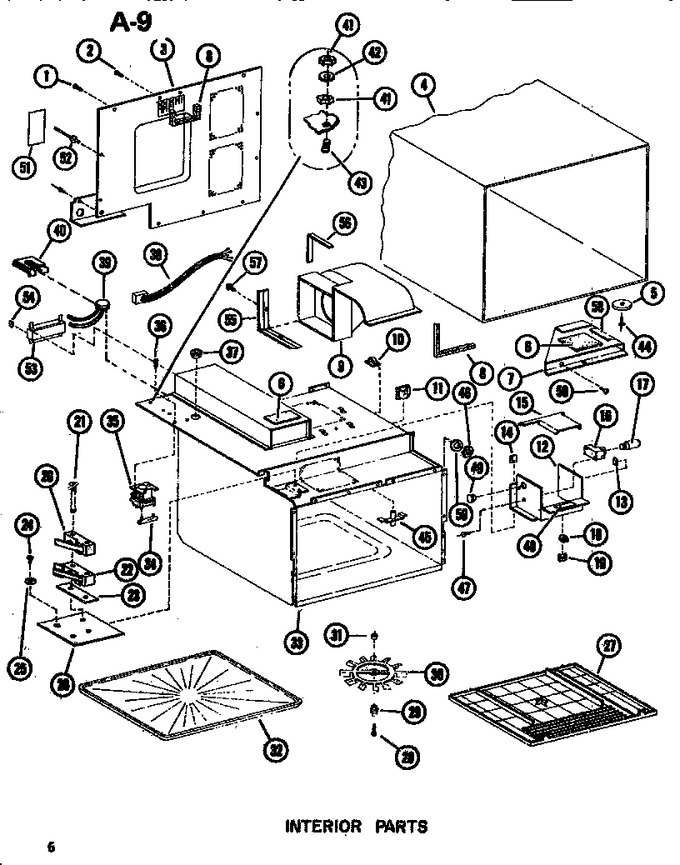

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0230015		Screw		Appelez-nous	-
2	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
3	D7379401		Access Panel Gray		Appelez-nous	-
4	D7110606		Wrapper		Appelez-nous	-
5	B5732501		Foot		Appelez-nous	-
6	B5107614		Gasket		Appelez-nous	-
7	C8758201		Air Baffle		Appelez-nous	-
8	A3030302		Gasket		Appelez-nous	-
9	D7334301		Blower Housing		Appelez-nous	-
10	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
11	M0104102		Clip, Cord				$ 8.10
12	C3662604		Light Shield		Appelez-nous	-
13	M0117801		Clip		Appelez-nous	-
14	M0113503		Clip		Appelez-nous	-
15	B5660101		Barrier		Appelez-nous	-
16	B5764301		Socket-lamp		Appelez-nous	-
17	A3167503		Bulb-250 V		Appelez-nous	-
18	B5665813		Thermal Cut Out		Appelez-nous	-
19	M0115802		Clip		Appelez-nous	-
20	B5765901		Bracket-switch		Appelez-nous	-
21	M0213123		Screw		Appelez-nous	-
22	B5666506		Switch		Appelez-nous	-
23	A3178601		Insulator Sheet		Appelez-nous	-
24	M0234114		Screw		Appelez-nous	-
25	M0272503		Washer		Appelez-nous	-
26	A3278902		Switch-sensing		Appelez-nous	-
27	D7190903		Grease Shield		Appelez-nous	-
28	M0201903		Machine Screw		Appelez-nous	-
29	B5661601		Bushing,stirrer		Appelez-nous	-
30	D7104401		Fan, Stirrer		Appelez-nous	-
31	A3165901		Spacer,stirrer		Appelez-nous	-
32	D7107703		Tray, Glass, Oven		Appelez-nous	-
33	D7175014		(+) Oven Cav Wld Ca		Appelez-nous	-
34	M0305007		Resistor, Relay A		Appelez-nous	-
35	R0159007		Relay Assy		Appelez-nous	-
35	C3656302		Relay, Power And Surge		Appelez-nous	-
36	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
37	A3196401		Bushing		Appelez-nous	-
38	D7343101		Wiring Harness		Appelez-nous	-
39	B5665811		Thermal Cut Out		Appelez-nous	-
40	M0115802		Clip		Appelez-nous	-
41	M0282005		Nut K				$ 7.07
42	M0270524		Washer		Appelez-nous	-
43	M0202518		Screw		Appelez-nous	-
44	A4539601		Pop Rivet		Appelez-nous	-
45	B5663801		Wldmt,stirrer Supt		Appelez-nous	-
46	M0283401		Nut, Self Thread		Appelez-nous	-
47	A4539609		Pop Rivet		Appelez-nous	-
48	M0275023		Tape,alum Per Roll		Appelez-nous	-
49	A3293501		Bushing		Appelez-nous	-
50	M0251002		Screw		Appelez-nous	-
51	B5738501		Seal K		Appelez-nous	-
52	A4539601		Pop Rivet		Appelez-nous	-
53	B5675301		Wldmt-wg Shield		Appelez-nous	-
54	M0113504		Clip K		Appelez-nous	-
55	C8791101		Scroll Adaptor		Appelez-nous	-
56	M0275011		Tape-plastic		Appelez-nous	-
57	M0130101		Clip K		Appelez-nous	-
58	M0275556		Sealer		Appelez-nous	-
59	M0272506		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
