Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08011716 Trim-frame Appelez-nous -
2 3051255 Glass-control Pnl Appelez-nous -
3 3015593 Panel-control Mtg Appelez-nous -
4 3206430 Switch-top Element 2100w Appelez-nous -
5 3051316 Switch-selector, 5 Pos, Upper Appelez-nous -
6 5303202782 Thermostat-oven Upper Appelez-nous -
7 5303051248 Clock Appelez-nous -
8 5303208334 Knob-clock (3) Appelez-nous -
9 5308037896 Indicator Light Special Order $ 39.75

10 5308010401 Bushing-control Panel Glass Appelez-nous -
11 5303091393 Knob-switch S/u (4) Appelez-nous -
10A 08011715 Clip-control Panel Frame Mounting (4) (non-illustrated) Appelez-nous -
11A 3051821 Knob-slctr 5 Pos (upper) Appelez-nous -
11B 5303091392 Knob-slctr 6 Pos (lower) Appelez-nous -
11C 5303051442 Knob-thermostat Upr Appelez-nous -
11D 3051820 Knob-thermostat Lwr Appelez-nous -
2A 08011713 Fastener-clock (3) (non-illustrated) Appelez-nous -
4A 3206431 Switch-top Element 1500w Appelez-nous -
5A 5303051315 Switch-selector 6 Pos Lower Appelez-nous -
6A 5303051320 Thermostat-oven Lower Appelez-nous -
9A 5303091462 Ind Light-250v (2) Appelez-nous -

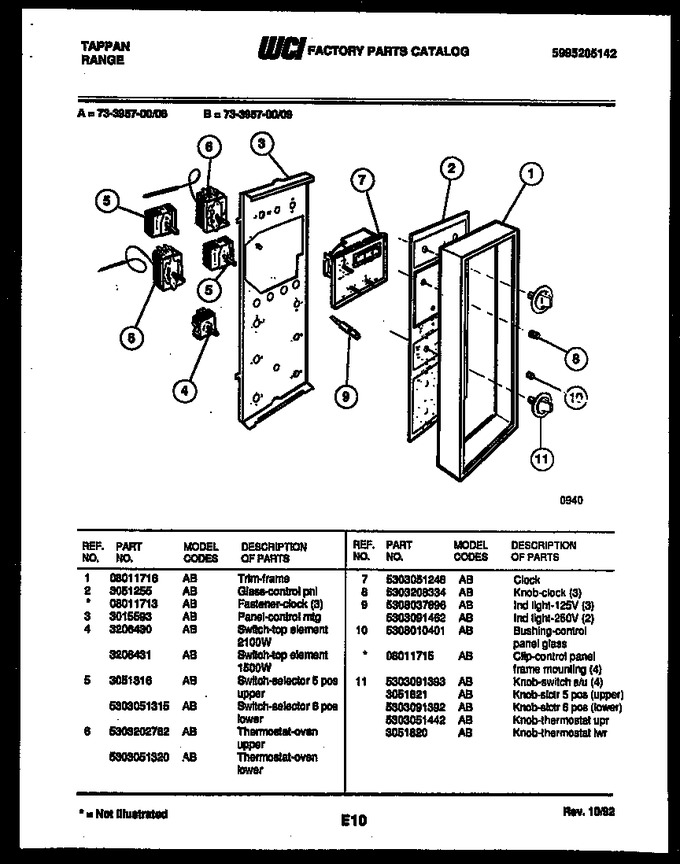

    View Diagram in Separate Window     Print Icon   Print Part List
