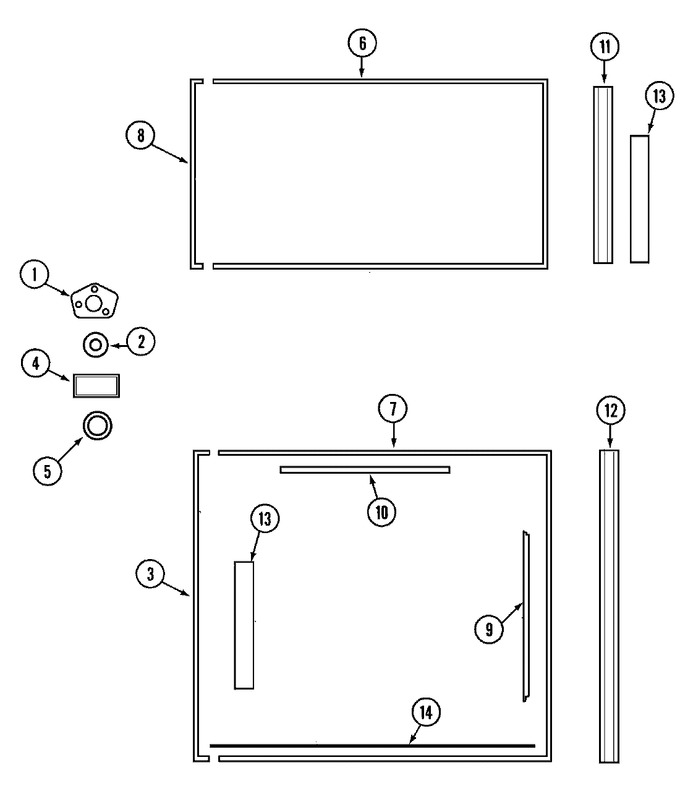

01 - Door Trim
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 2 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 3 | 67568-2 | Trim, End Ff |
|
- | |||||
| 4 | 67194-1 | Insert, Nameplate |
|
- | |||||
| 5 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) |
|
Immediately | $ 45.86 | ||||
| 5 | 67483-1 | Washer, Center Hinge (upper) |
|
- | |||||
| 6 | 67571-2 | Trim, Perimeter Frz. Door |
|
- | |||||
| 7 | 67572-2 | Perimeter Trim F.f. Door |
|
- | |||||
| 7 | 414003-13 | Screw |
|
- | |||||
| 8 | 67568-1 | Trim End |
|
- | |||||
| 9 | 95115-1 | Tape, 1/2`` X 15` |
|
- | |||||
| 10 | 67576-1 | Channel Escut Bottom |
|
- | |||||
| 10 | 67576-7 | Sides |
|
- | |||||
| 10 | 67576-6 | Bottom & Top |
|
- | |||||
| 10 | 67576-3 | Top |
|
- | |||||
| 10 | 67576-2 | Side |
|
- | |||||
| 11 | 67577-1 | Retainer, Frz. |
|
- | |||||
| 12 | 67577-2 | Retainer F.f. |
|
- | |||||
| 13 | 67575-1 | Insert, Retainer |
|
- | |||||
| 14 | 67606-3 | Shim |
|
- | |||||
| 15 | 67875-1 | Tape (16 Ft) |
|
- |
