SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker

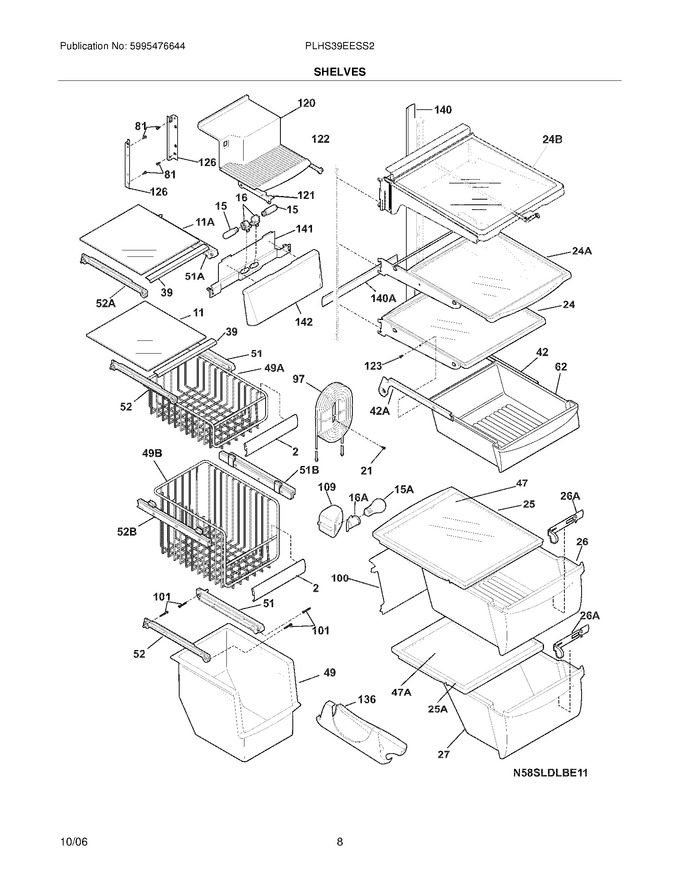

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510603		Trim-basket				$ 63.47
11	240350648		Shelf-freezer,glass ,lower		Appelez-nous	-
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	240590403		Socket-light   (Replaces: 240590401)				$ 26.54
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625 ,21   (Replaces: 5304455658)				$ 14.41
24	240355201		Shelf-``spill-safe``,fixed ,(1)				$ 301.14
25	240354502		Cover-crisper Pan,upper			Immediately	$ 100.02
26	240354723		Pan-crisper,upper   (Replaces: 240354717)			Immediately	$ 164.31
27	240354805		Pan-crisper,lower   (Replaces: 240354818)				$ 167.69
39	240367601		Trim-shelf,front				$ 64.31
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350613		Insert-pan Cover,glass				$ 123.62
49	240564301		Basket-sliding				$ 131.97
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	240355527		Pan-meat   (Replaces: 240355518)				$ 184.06
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 280.67
100	240326303		Cover-water Tank   (Replaces: 240326301)				$ 61.28
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
109	240351301		Base-crisper Light Socket				$ 15.65
120	241691801		Shelf-ice Cream				$ 260.87
121	241561001		Rail-ice Cream Shelf,lh				$ 101.63
122	241561101		Rail-ice Cream Shelf,rh				$ 78.87
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 14.89
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
136	241657701		Dispenser-can,white				$ 57.41
140	240430501		Channel,wtr Tube Cover				$ 97.81
141	240585403		Bracket-light Socket				$ 42.58
142	240582701		Shield-light,deli Pan		Appelez-nous	-
11A	240350647		Shelf-freezer,glass ,upper				$ 175.14
15A	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16A	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
24A	240355277		Shelf-``spill-safe``,sliding ,(2)   (Replaces: 240350103)				$ 213.87
24B	240355277		Shelf-``spill-safe``,sliding ,``aspect`` ,complete   (Replaces: 240424603)				$ 213.87
25A	240354602		Cover-crisper Pan,lower			Immediately	$ 88.46
26A	240351101		Control-humidity			Immediately	$ 43.95
42A	240350001		· Spring-meat Pan Rail				$ 76.55
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 58.12
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
47A	240350614		Insert-pan Cover,glass				$ 145.60
49A	240530501		Basket-sliding,upper ,half				$ 132.68
49B	240530503		Basket-sliding,upper ,full				$ 220.14
51A	240395502		Hanger-basket,rh				$ 73.00
51B	240579801		Hanger-basket,rh				$ 61.27
52A	240395602		Hanger-basket,lh				$ 61.66
52B	240579802		Hanger-basket,lh				$ 60.01
F140	240430503		Channel,wtr Tube Cover		Appelez-nous	-
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	241537504		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
