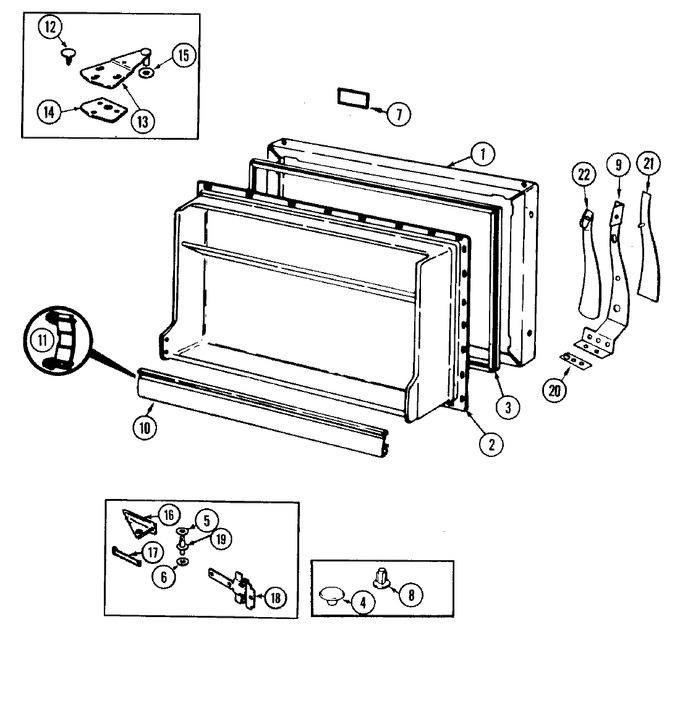

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-4-AM		Panel, Frz. Door (alm)	11	Appelez-nous	-
2	69464-1		Liner	11	Appelez-nous	-
2	65275-5		Screw	11	Appelez-nous	-
3	70020-1		Gasket, Door	11	Appelez-nous	-
4	67634-3		Plug Button, Hinge Cup (alm)	11	Appelez-nous	-
5	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	11		Immediately	$ 45.86
6	54233-2		Washer	11	Appelez-nous	-
7	66982-32		Nameplate (alm)	11	Appelez-nous	-
8	55782-6		Plug Button (almond)	11	Appelez-nous	-
9	69300-1		Handle, Door	11	Appelez-nous	-
9	65275-57		Screw	11	Appelez-nous	-
9	69257-1		Clip, Handle	11	Appelez-nous	-
10	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)	11			$ 129.55
11	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	11			$ 9.39
12	56144-9		Plug Button, Hinge Screw (alm)	11	Appelez-nous	-
13	53709-20		Hinge, Upper	11	Appelez-nous	-
13	WP3-24838-048		Screw   (Replaces: 65275-52)	11			$ 7.00
14	65031-1		Shim, Upper Hinge	11	Appelez-nous	-
15	54233-7		Washer	11	Appelez-nous	-
16	69514-2		Hinge, Center	11	Appelez-nous	-
16	65275-55		Screw	11	Appelez-nous	-
17	69515-1		Shim, Center Hinge	11	Appelez-nous	-
18	69419-1		Tapping Plate, Center Hinge	11	Appelez-nous	-
19	69517-1		Pin, Center Hinge	11	Appelez-nous	-
20	69301-1		Shim, Handle	11	Appelez-nous	-
21	68959-2		Insert	11	Appelez-nous	-
22	60445-4		Insert, Handle (back)	11	Appelez-nous	-
22	65275-53		Screw	11	Appelez-nous	-
