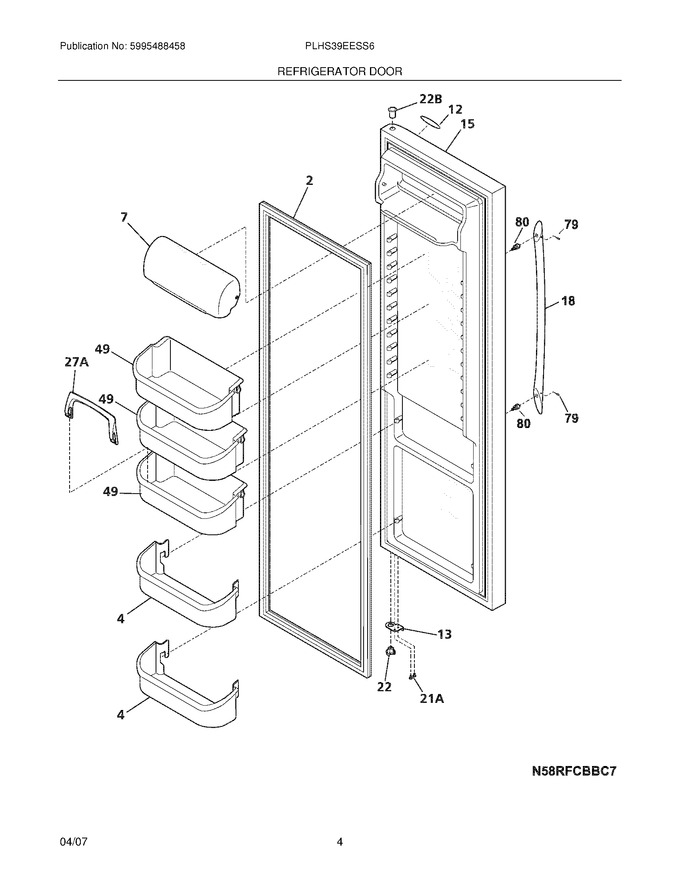

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240363702 | Bin-door,2-liter |
|
Immediately | $ 76.40 | ||||
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 12 | 242015101 | Label-nameplate (Replaces: 241808801) |
|
$ 4.55 | |||||
| 13 | 240581905 | Door Stop,black ,ref |
|
$ 60.25 | |||||
| 15 | 241534542 | Door-refr,stainless ,complete Assy |
|
$ 632.25 | |||||
| 18 | 240536818 | Handle-door,stainless Steel ,with Insert,& Set Screw |
|
$ 202.00 | |||||
| 22 | 240328203 | Bearing-hinge,black ,closer |
|
Immediately | $ 27.23 | ||||
| 49 | 240324502 | Bin-door,gallon (Replaces: 240430313) |
|
Immediately | $ 102.61 | ||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 11.88 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 19.13 | |||||
| F2 | 241786015 | Gasket-refr Door,black ,magnetic (Replaces: 241674807) |
|
Immediately | $ 94.66 | ||||
| NI | 241601001 | Wrench,allen |
|
- |
