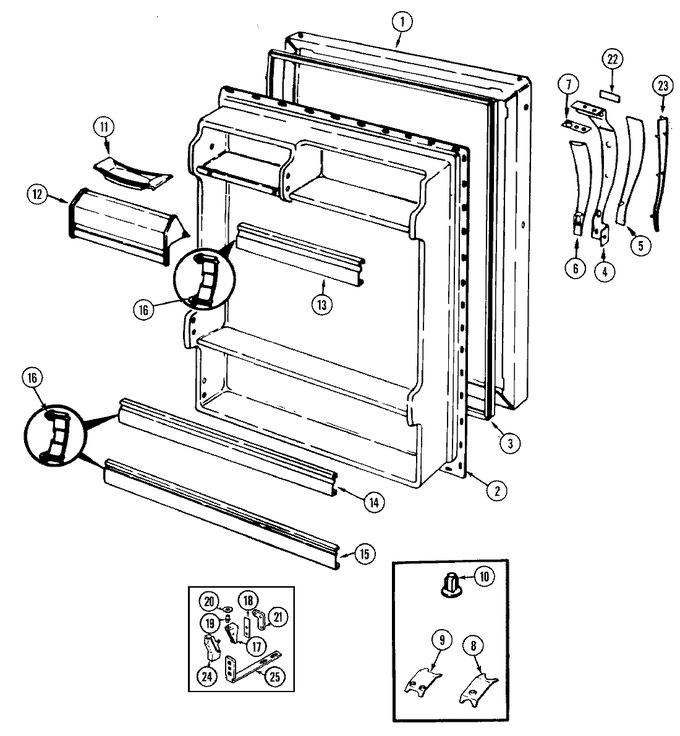

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-4-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	69443-1		Liner, F.f. Door	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
3	70020-2		Gasket, Door	10	Appelez-nous	-
4	9986-122		Screw	10	Appelez-nous	-
4	69300-4		Handle, Door----na	10	Appelez-nous	-
5	68016-6		Handle Insert, Front	10	Appelez-nous	-
6	60445-4		Insert, Handle (back)	10	Appelez-nous	-
6	9986-112		Screw	10	Appelez-nous	-
7	69301-1		Shim, Handle	10	Appelez-nous	-
8	56209-3		Clip, Stop Screw	10	Appelez-nous	-
9	60123-2		Clip, Stop Screw	10	Appelez-nous	-
10	55782-10		Plug Button, Hdle & Door Stop	10	Appelez-nous	-
10	55782-6		Plug Button (almond)	10	Appelez-nous	-
11	29936-2		Tray, Butter	10	Appelez-nous	-
12	69058-23		Door, Dairy	10	Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-344)	10			$ 129.55
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)	10			$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-113)	10			$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	10			$ 9.39
17	69516-2		Hinge, Lower (blk)	10	Appelez-nous	-
17	403100-1		Screw	10	Appelez-nous	-
18	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
19	69845-1		Pin, Lower Hinge	10			$ 44.55
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
20	67483-4		Washer	10	Appelez-nous	-
21	403100-1		Screw	10	Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
22	60603-25		Insert, Nameplate	10	Appelez-nous	-
23	68017-3		Insert, Vinyl Clad	10	Appelez-nous	-
24	68978-1		Cover, Lower Hinge (blk)	10	Appelez-nous	-
25	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
