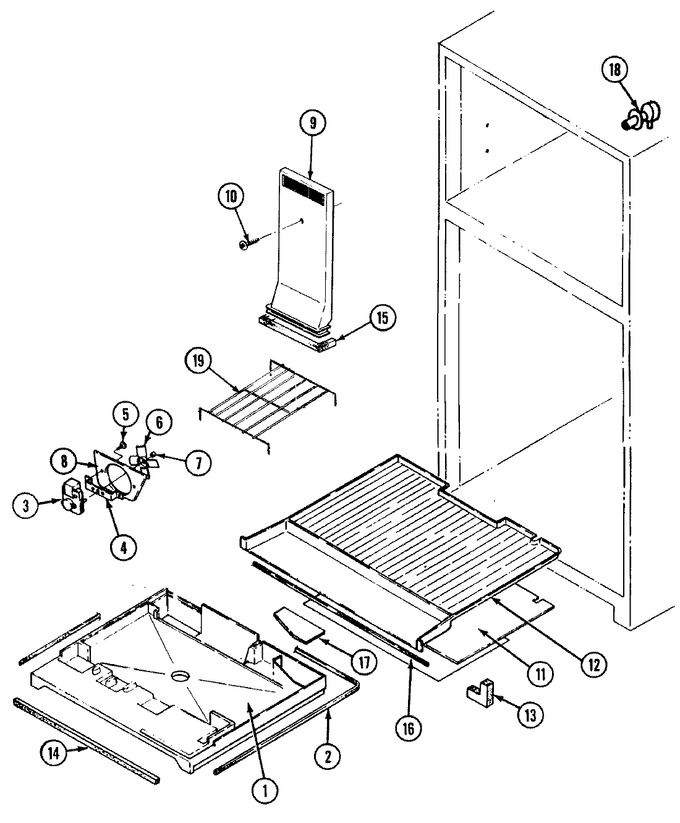

01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Ice Maker Kit
04 - Shelves & Accessories
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69401-1 | Tray, Styrofoam Mullion |
|
- | |||||
| 2 | 69414-1 | Seal, Mullion Tray |
|
- | |||||
| 3 | 69106-2 | Motor, Evaporator Fan |
|
$ 95.45 | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 400015-12 | Screw |
|
- | |||||
| 6 | 69107-1 | Blade, Evaporator Fan |
|
- | |||||
| 7 | 420092-900 | Washer, Spring |
|
- | |||||
| 8 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 9 | 68592-2 | Tunnel, Air |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 11 | 66403-1 | Cover, Evaporator |
|
- | |||||
| 12 | 69395-1 | Bottom, Frz. |
|
- | |||||
| 13 | 68946-1 | Seal |
|
- | |||||
| 14 | 69562-1 | Seal, Mullion Tray (front) |
|
- | |||||
| 15 | 66325-34 | Seal, Air Tunnel----na |
|
- | |||||
| 16 | 69413-2 | Magnet |
|
- | |||||
| 17 | 66480-4 | Cover, Plenum |
|
- | |||||
| 18 | 68307-1 | Grommet, Water Entry |
|
- | |||||
| 19 | 68259-7 | Trivet |
|
- |
