SELECT A DIAGRAM

01 - Freezer Compartment

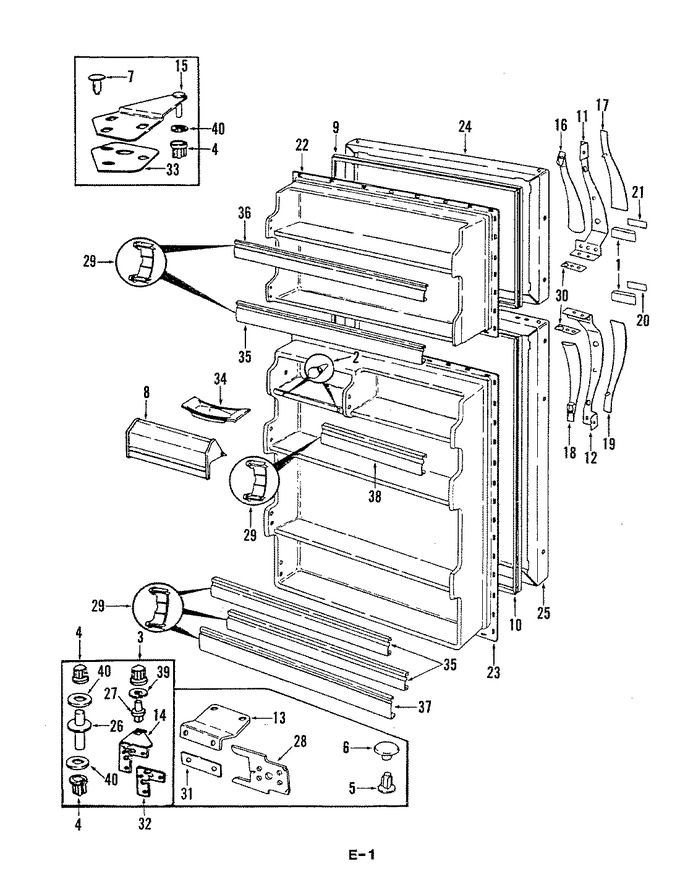

02 - Fresh Food & Freezer Door


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60487-1		Bezel		Appelez-nous	-
2	28272-6		Bumper, Door		Appelez-nous	-
3	66034-1		Bushing, Lower Hinge				$ 19.76
4	66036-1		Bushing,top/center Hinge		Appelez-nous	-
5	55782-6		Plug Button (almond)		Appelez-nous	-
6	56186-6		Plug Button, (almond)		Appelez-nous	-
7	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
7	60123-2		Clip, Stop Screw		Appelez-nous	-
8	60406-30		Door, Dairy		Appelez-nous	-
9	60462-1		Gasket, Door		Appelez-nous	-
10	60462-2		Gasket, Door		Appelez-nous	-
11	60491-1		Door Handle		Appelez-nous	-
12	60491-2		Door Handle		Appelez-nous	-
13	60031-2		Door Hinge, Center		Appelez-nous	-
14	60630-8		Door Hinge, Lower		Appelez-nous	-
15	53709-18		Door Hinge, Upper		Appelez-nous	-
16	60490-1		Insert		Appelez-nous	-
17	60489-3		Insert		Appelez-nous	-
18	60490-2		Insert		Appelez-nous	-
19	60489-4		Insert		Appelez-nous	-
20	60533-6		Insert		Appelez-nous	-
21	60533-5		Insert		Appelez-nous	-
22	60044-9		Inner Panel		Appelez-nous	-
23	60051-6		Inner Panel		Appelez-nous	-
24	60033-4-AM		Outer Panel		Appelez-nous	-
25	60032-51-AM		Outer Panel		Appelez-nous	-
26	60035-4		Pin, Center Hinge		Appelez-nous	-
27	53672-1		Pin, Lower Hinge		Appelez-nous	-
28	60622-1		Tapping Plate		Appelez-nous	-
29	9986-12		Screw,door Liner		Appelez-nous	-
29	9986-122		Screw		Appelez-nous	-
29	401005-12		Screw		Appelez-nous	-
29	9986-112		Screw		Appelez-nous	-
29	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
29	9996-87		Screw, Hinge-upper		Appelez-nous	-
29	WP3-24838-048		Screw   (Replaces: 9986-107)				$ 7.00
29	403062-5		Screw		Appelez-nous	-
30	60488-1		Shim		Appelez-nous	-
31	60034-1		Spacer, Center Hinge		Appelez-nous	-
32	60626-1		Shim, Lower Hinge		Appelez-nous	-
33	65031-1		Shim, Upper Hinge		Appelez-nous	-
34	29936-2		Tray, Butter		Appelez-nous	-
35	WP61003045		Trim, Door Shelf   (Replaces: 65151-93)				$ 129.55
37	WP61003045		Trim, Door Shelf   (Replaces: 65151-111)				$ 129.55
38	WP61003045		Trim, Door Shelf   (Replaces: 65151-22)				$ 129.55
39	54233-2		Washer		Appelez-nous	-
40	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47

    View Diagram in Separate Window       Print Part List
