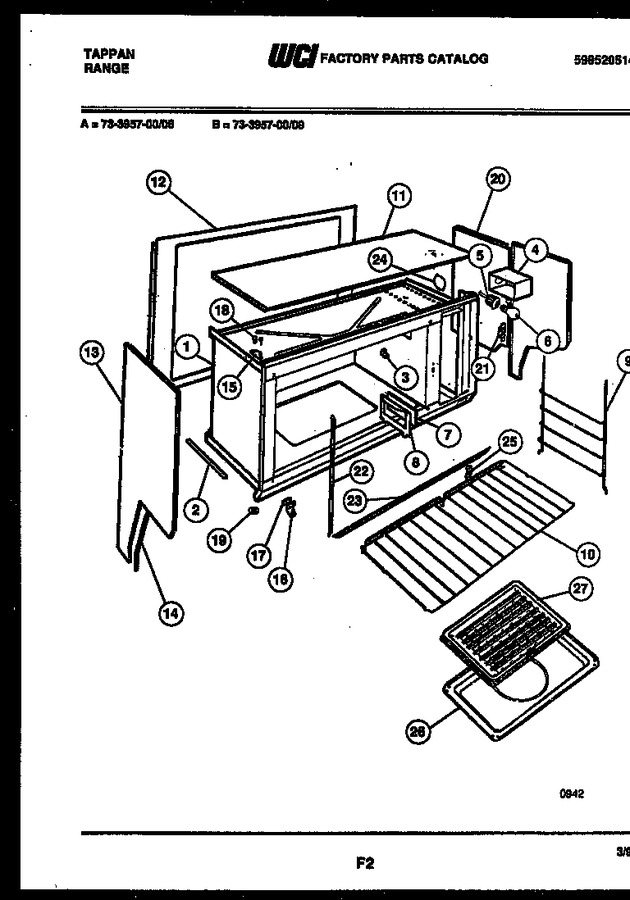

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 008T268F01 | Angle, Stiffner (2) |
|
- | |||||
| 3 | 5303011805 | Clip-cap Bulb (2) |
|
- | |||||
| 4 | 069T046F01 | Box, Light |
|
- | |||||
| 5 | 3014073 | Socket-light |
|
- | |||||
| 6 | 5303208582 | Light Bulb |
|
- | |||||
| 7 | 08011668 | Lens-oven Light |
|
- | |||||
| 8 | 08011669 | Cover Lens |
|
- | |||||
| 9 | 280T021S05 | Glide Oven Rack (2) |
|
- | |||||
| 10 | 08011675 | Rack-oven |
|
- | |||||
| 11 | 3131625 | Panel-top |
|
- | |||||
| 12 | 3051236 | Back-oven Wall Upper |
|
- | |||||
| 13 | 3051264 | Panel-bodyside Rh-almond |
|
- | |||||
| 13 | 3051261 | Panel, Bodyside, Lh (almond) |
|
- | |||||
| 14 | 08010548 | Trim Lh |
|
- | |||||
| 15 | 3131613 | Hinge-top |
|
- | |||||
| 16 | 5303051166 | Hinge-bottom |
|
- | |||||
| 17 | 08011665 | Plate-hinge |
|
- | |||||
| 18 | 5308011635 | Screw-10-32 Shoulder Special (2) |
|
- | |||||
| 19 | 08011664 | Washer-hinge (2) |
|
- | |||||
| 20 | 5303208706 | Shield-wool Side |
|
- | |||||
| 21 | 08011680 | Catch-door |
|
- | |||||
| 22 | 3201722 | Seal-door-sides (2) |
|
- | |||||
| 23 | 3201721 | Seal-door Top & Btm (2) |
|
- | |||||
| 24 | 08067732 | Cover-outlet (hood) |
|
- | |||||
| 25 | 691T007P01 | Strike, Door |
|
- | |||||
| 26 | 3015585 | Broiler Pan |
|
- | |||||
| 27 | 3015587 | Insert-broiler Pan |
|
- | |||||
| *44033 | 5303203651 | Fuse, Thermal Cutout |
|
$ 77.86 | |||||
| 14A | 08010549 | Trim-rh |
|
- | |||||
| 2A | 3015590 | Insulation-bottom 1 1/2 X 13 X 221/2 (non-illustrated) |
|
- | |||||
| 2B | 3015588 | Insulation-top 3 X 12 1/2 X 24 (non-illustrated) |
|
- | |||||
| 2C | 3015591 | Insulation-back And Side 2 X 6 X 50 (non-illustrated) |
|
- |
