Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3014099 Spacer-bodyside, (8) Special Order $ 3.62

3 3131478 Panel-bodyside Lh (wheat) Appelez-nous -
4 3051109 Burner Box Appelez-nous -
5 3131101 Cover, Plate Appelez-nous -
6 3131567 Back, Main Appelez-nous -
7 3051400 Shield, Lower Wall Appelez-nous -
8 3051501 Cover, Lower Access Appelez-nous -
9 3051368 Cover-flue Appelez-nous -
10 3051221 Rack, Oven (2) Appelez-nous -
11 636M004P01 Screw, Level (4) Appelez-nous -
12 3131570 Cover-hinge Cutout (2) Special Order $ 7.35

13 3051398 Shield, Wool Lower Appelez-nous -
14 3051414 Channel, Door Hinge (2) Appelez-nous -
15 3051104 Bottom, Oven Appelez-nous -
16 3051385 Fuse-thermal Cutout Appelez-nous -
17 539T010F01-86 Broiler Pan Appelez-nous -
18 3131356 Insert, Broiler Pan Appelez-nous -
19 709T031P01 Terminal Block Appelez-nous -
20 711T048P01 Ground Strap Appelez-nous -
21 3131295 Clip, Thermal Bulb (2) Appelez-nous -
22 3051162 Glide-drawer (2) In-Stock Immediately $ 8.22

23 3051367 Clip-wire Appelez-nous -
24 3131298 Glass-oven Light Lens Appelez-nous -
25 3051429 Insulation, Bottom Appelez-nous -
26 3051344 Tube-oven Vent Appelez-nous -
27 3131104 Wire, Glass Retainer Appelez-nous -
28 3051258 Latch, Door Appelez-nous -
29 3051473 Handle, Latch Appelez-nous -
30 358T158S02 Knob, Latch Appelez-nous -
31 657T018P01 Shield-latch Appelez-nous -
32 3131593 Shield-bi Mtl Latch Appelez-nous -
33 241T001P01 Fastener, Push On (3) Appelez-nous -
34 695T226P01 Switch-latching Appelez-nous -
35 3131363 Tube, Oven Light Appelez-nous -
36 3014073 Socket-oven Light Appelez-nous -
37 374T018P05 Light Bulb, Oven Appelez-nous -
38 3051737 Filter-catalyst Appelez-nous -
39 612T079P01 Retainer, Catalyst Appelez-nous -
40 695T128P03 Switch, Door Appelez-nous -
41 3131289 Bracket, Light Switch Appelez-nous -
42 3051495 Rod, Light Appelez-nous -
43 3051251 Cover, Rod Appelez-nous -
44 3051731 Button-remove Light Switch Appelez-nous -
45 3051430 Shield, Heat Lower Appelez-nous -
46 3051723 Tube-post Lh Appelez-nous -
27A 3131304 Insulation Wrap (non-illustrated) Appelez-nous -
27B 3131303 Insulation, Back (non-illustrated) Appelez-nous -
27C 3131114 Bumper-front Frame (2) (non-illustrated) Appelez-nous -
27D 636T163P01 Screw-hinge Mt. (6) (non-illustrated) Appelez-nous -
27E 479T069P41 Nut-brass (6) (non-illustrated) Appelez-nous -
30A 636T144P01 Screw, Set, Latch Knob (non-illustrated) Appelez-nous -
3A 3131477 Panel-bodyside Rh (wheat) Appelez-nous -
45A 3131305 Insulation, Touch (non-illustrated) Appelez-nous -
46A 3051724 Tube-post Rh Appelez-nous -

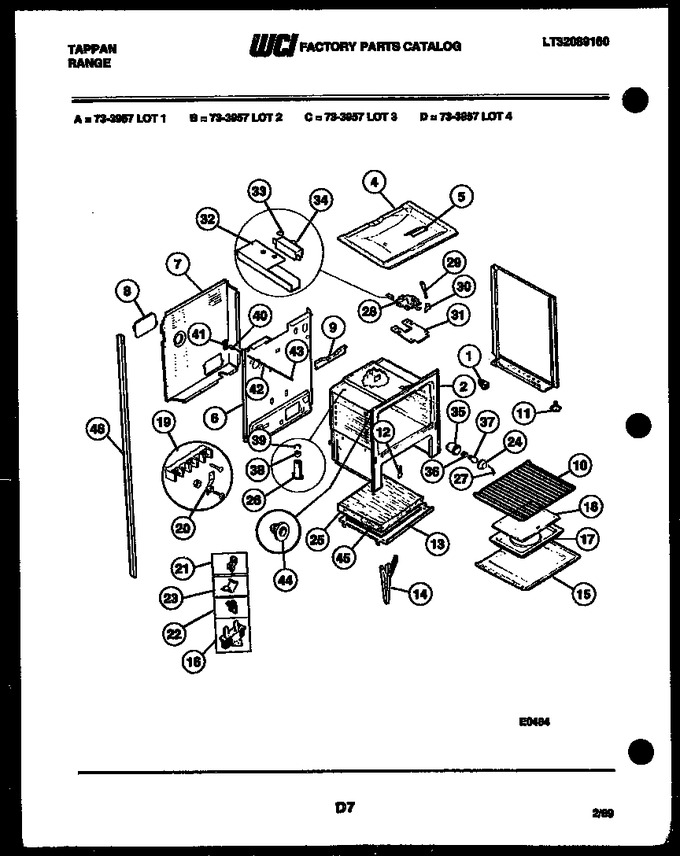

    View Diagram in Separate Window     Print Icon   Print Part List
