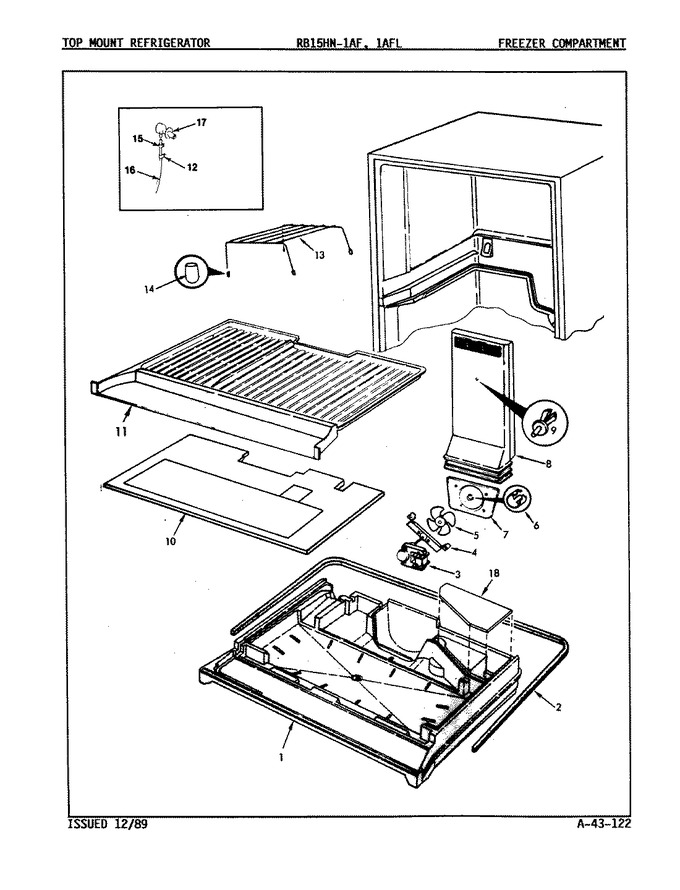

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60576-1 | Tray, Divider |
|
- | |||||
| 2 | 66325-1 | Seal |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 9 | 66045-1 | Pin, Air Tunnel Mtg. |
|
- | |||||
| 10 | 66403-1 | Cover, Evaporator |
|
- | |||||
| 11 | 66460-1 | Bottom, Frz. |
|
- | |||||
| 12 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 12 | WP33002917 | Screw (Replaces: 65275-1) |
|
Immediately | $ 6.90 | ||||
| 13 | 68259-1 | Trivet |
|
- | |||||
| 14 | 24580-3 | Tip |
|
- | |||||
| 15 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) |
|
$ 9.95 | |||||
| 16 | WPB5705307 | Tubing (Replaces: 67579-8) |
|
$ 11.19 | |||||
| 17 | 68307-1 | Grommet, Water Entry |
|
- | |||||
| 18 | 66480-1 | Cover, Plenum |
|
- |
