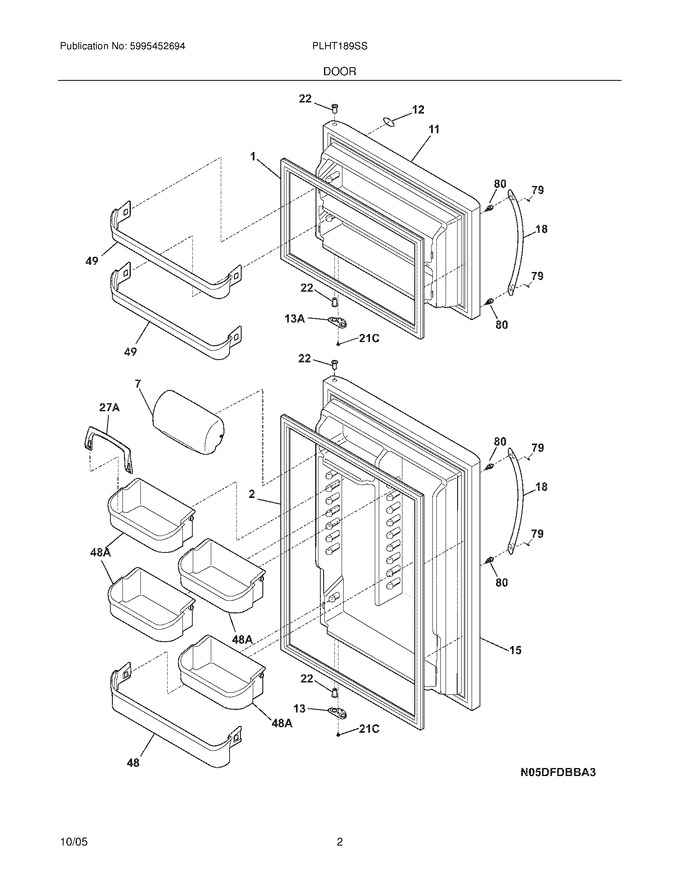

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
11 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 240542121 | Gasket-frzr Door,black ,magnetic |
|
- | |||||
| 2 | 241872512 | Gasket-refr Door,black ,magnetic (Replaces: 240542124) |
|
Immediately | $ 165.39 | ||||
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 11 | 241623301 | Door,frzr ,stainless Steel ,rh |
|
$ 437.77 | |||||
| 12 | 240558802 | Label-nameplate |
|
$ 3.03 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 241623401 | Door,refr ,stainless Steel ,rh |
|
$ 539.03 | |||||
| 18 | 240536803 | Handle-door,stainless Steel ,with Insert |
|
$ 234.70 | |||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495805 | Bin-door,pseudo ,frzr |
|
$ 50.94 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503) |
|
Immediately | $ 18.60 | ||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 21.27 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 19.13 | |||||
| 48A | 241808201 | Bin-door,gallon (Replaces: 240430314) |
|
Immediately | $ 79.97 | ||||
| NI | 218490901 | Cleaner,stainless Steel |
|
$ 5.58 |
