SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

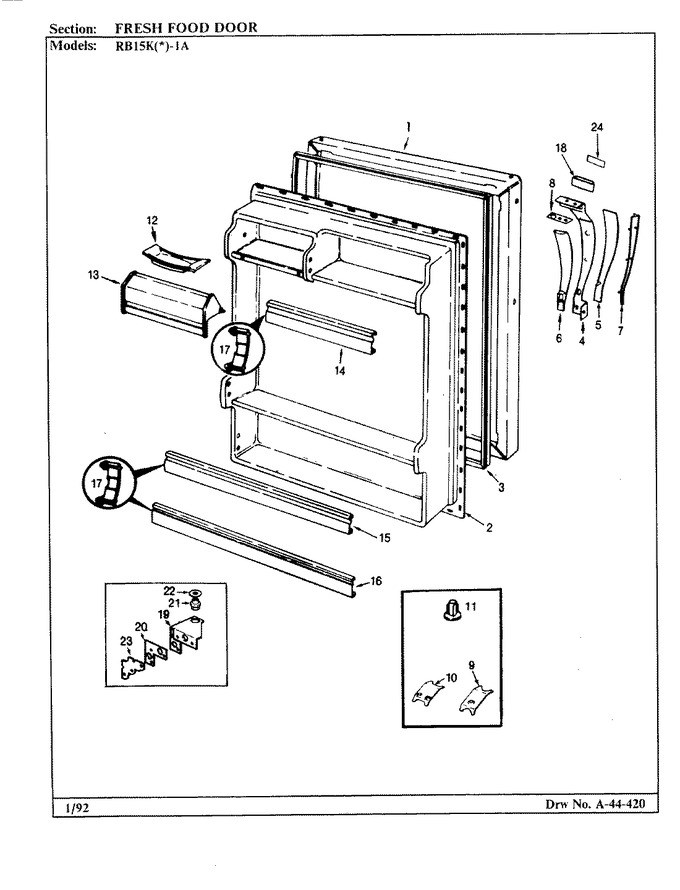

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68469-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	65935-14		Liner, F.f. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-2		Gasket, Door		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
4	60491-2		Door Handle		Appelez-nous	-
5	68091-3		Insert		Appelez-nous	-
6	65275-53		Screw		Appelez-nous	-
6	60490-6		Insert		Appelez-nous	-
7	68092-3		Insert		Appelez-nous	-
8	60488-2		Shim		Appelez-nous	-
9	56209-3		Clip, Stop Screw		Appelez-nous	-
10	60123-2		Clip, Stop Screw		Appelez-nous	-
11	55782-6		Plug Button (almond)		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	66184-395		Door, Dairy		Appelez-nous	-
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-22)				$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-93)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-111)				$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	401005-12		Screw		Appelez-nous	-
19	403100-1		Screw		Appelez-nous	-
19	67714-6		Hinge, Lower		Appelez-nous	-
20	60626-1		Shim, Lower Hinge		Appelez-nous	-
21	68788-1		Hinge Pin		Appelez-nous	-
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
23	65790-3		Tapping Plate		Appelez-nous	-
23	403100-1		Screw		Appelez-nous	-
24	60533-12		Insert		Appelez-nous	-
