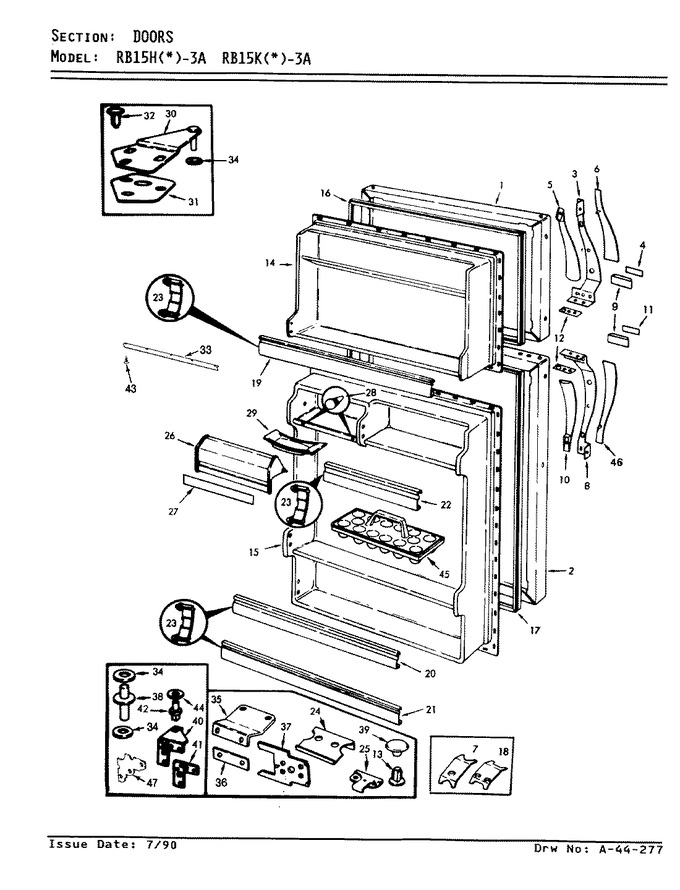

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68470-1-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68469-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	66255-3		Door Handle		Appelez-nous	-
4	60603-15		Insert, Handle		Appelez-nous	-
5	60445-1		Insert		Appelez-nous	-
6	68017-4		Insert, Handle		Appelez-nous	-
6	68016-1		Insert, Handle		Appelez-nous	-
7	56209-3		Clip, Stop Screw		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
8	66255-4		Door Handle		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
9	9986-112		Screw		Appelez-nous	-
10	60445-1		Insert		Appelez-nous	-
11	60603-16		Insert, Nameplate		Appelez-nous	-
12	68776-1		Shim Handle----na		Appelez-nous	-
13	55782-6		Plug Button (almond)		Appelez-nous	-
14	65930-5		Liner, Door		Appelez-nous	-
15	65935-2		Liner, Door		Appelez-nous	-
15	9986-12		Screw,door Liner		Appelez-nous	-
16	66199-1		Gasket, Door		Appelez-nous	-
17	66199-2		Gasket, Door		Appelez-nous	-
18	56209-3		Clip, Stop Screw		Appelez-nous	-
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-180)				$ 129.55
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-182)				$ 129.55
21	WP61003045		Trim, Door Shelf   (Replaces: 65151-180)				$ 129.55
22	65151-300		Trim, Door Shelf		Appelez-nous	-
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	60030-1		Door Stop		Appelez-nous	-
25	60419-10		Door Stop		Appelez-nous	-
25	60123-2		Clip, Stop Screw		Appelez-nous	-
25	9986-108		Screw		Appelez-nous	-
26	60406-12		Door, Dairy		Appelez-nous	-
27	68128-6		Insert		Appelez-nous	-
28	28272-6		Bumper, Door		Appelez-nous	-
29	29936-2		Tray, Butter		Appelez-nous	-
30	53709-20		Hinge, Upper		Appelez-nous	-
31	65031-1		Shim, Upper Hinge		Appelez-nous	-
32	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
33	68544-1		Seal, Secondary		Appelez-nous	-
34	54233-2		Washer		Appelez-nous	-
34	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
34	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
34	54233-1		Washer				$ 7.71
35	68811-2		Hinge, Center		Appelez-nous	-
36	68812-1		Shim, Center Hinge		Appelez-nous	-
37	65275-24		Screw		Appelez-nous	-
37	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
38	67322-1		Pin, Center Hinge		Appelez-nous	-
39	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
40	67714-6		Hinge, Lower		Appelez-nous	-
40	403100-801		Screw		Appelez-nous	-
41	60626-1		Shim, Lower Hinge		Appelez-nous	-
42	68788-1		Hinge Pin		Appelez-nous	-
43	52447-4		Clip		Appelez-nous	-
44	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
45	60066-1		Tray, Egg		Appelez-nous	-
46	68016-2		Insert, Handle----na		Appelez-nous	-
46	68017-4		Insert, Handle		Appelez-nous	-
47	65790-3		Tapping Plate		Appelez-nous	-
