SELECT A DIAGRAM
01 - Body/control Panel
02 - Control Panel
03 - Door/access Drawer
04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

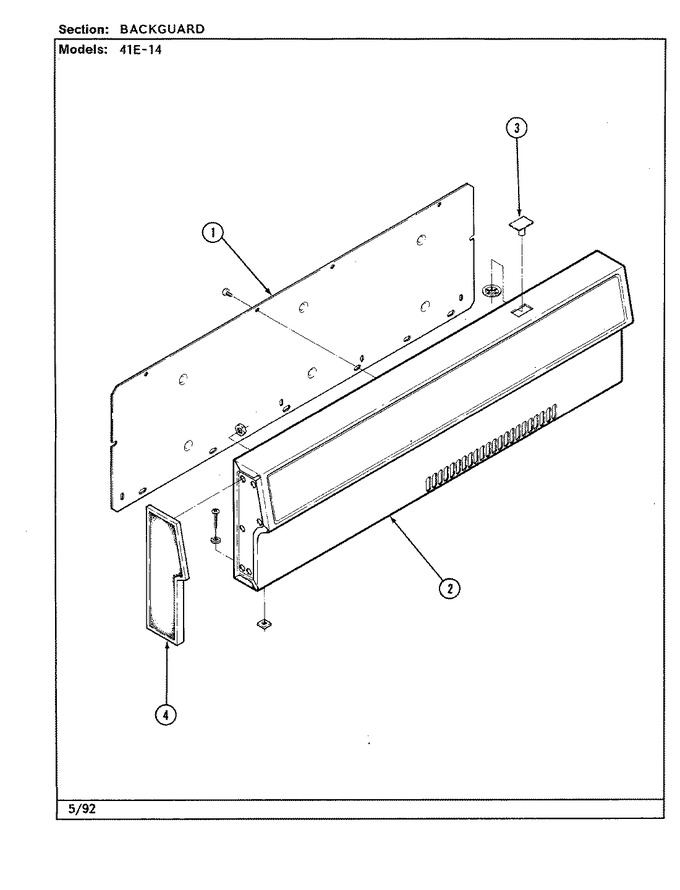

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F036-20 | Shield | 01 |
|
- | ||||
| 2 | 7719P040-60 | Plate, Name | 01 |
|
- | ||||
| 2 | 7719P030-60 | Plate, Name | 01 |
|
- | ||||
| 2 | 7719P001-60 | Plate, Name | 01 |
|
- | ||||
| 2 | 2601W201-81 | Panel, Backguard White | 01 |
|
- | ||||
| 3 | 1201229 | Cover | 01 |
|
- | ||||
| 4 | 7726P012-60 | Trim, Bkgd. (rt) | 01 |
|
- | ||||
| 4 | 7726P001-60 | Trim, Bkgd. (lt) | 01 |
|
- | ||||
| 4 | 3802F014-80 | Brace | 01 |
|
- |
