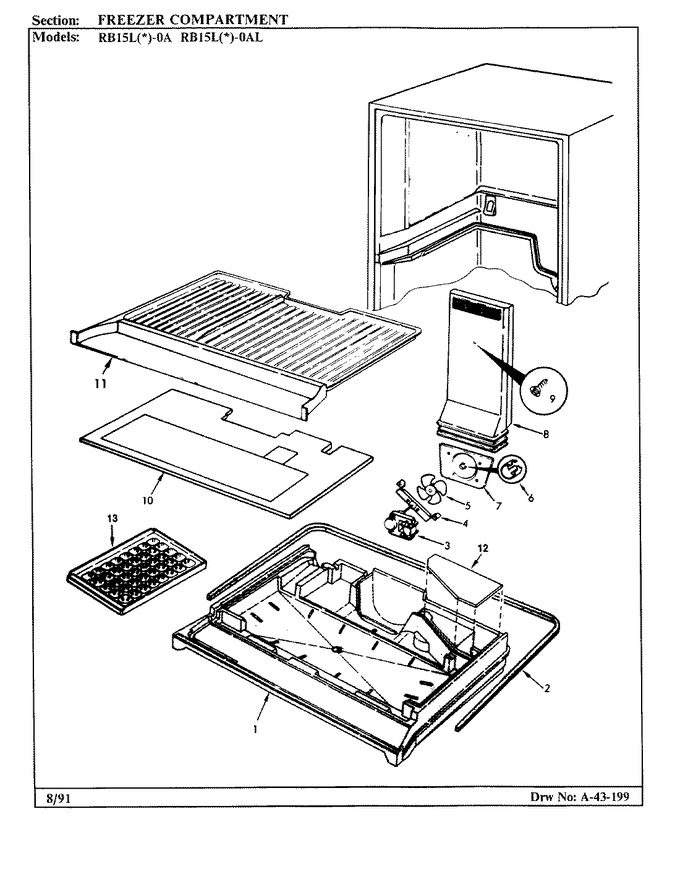

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67518-1 | Tray, Styrofoam Mullion |
|
- | |||||
| 1 | 67730-1 | Seal, Front Corner |
|
- | |||||
| 2 | 68866-1 | Seal |
|
- | |||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-3 | Bracket |
|
- | |||||
| 5 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 68592-1 | Tunnel, Air |
|
- | |||||
| 8 | 66325-29 | Seal, Tunnel |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 10 | 66403-3 | Cover, Evaporator |
|
- | |||||
| 11 | 66325-10 | Seal, Frost Chest |
|
- | |||||
| 11 | 66460-1 | Bottom, Frz. |
|
- | |||||
| 12 | 66480-4 | Cover, Plenum |
|
- | |||||
| 13 | WP61002140 | Ice Cube Tray (Replaces: 60112-1) |
|
$ 18.23 |
