SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Shelves & Accessories


06 - Unit Compartment & System

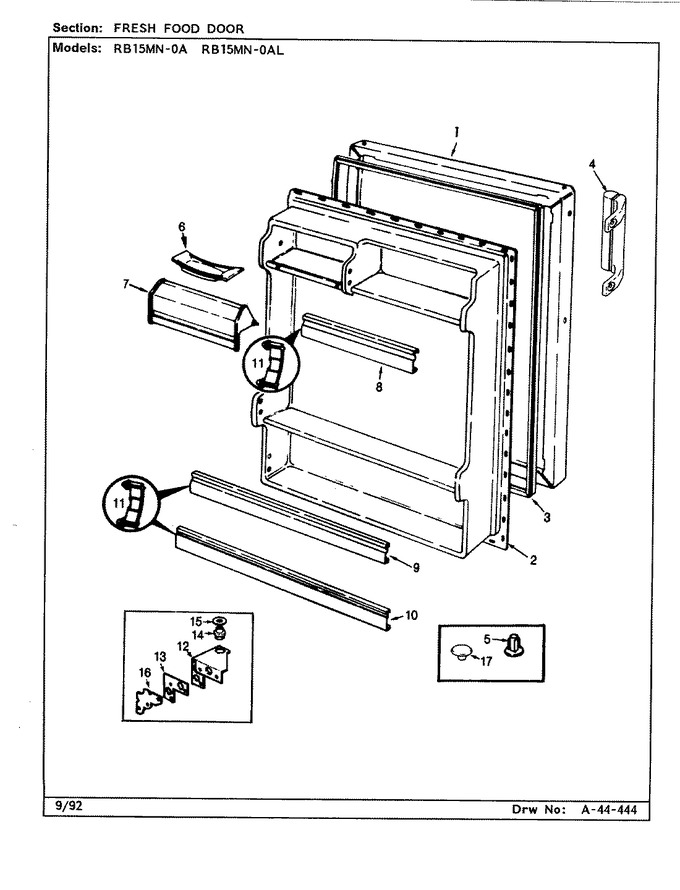

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68469-9-WW		Panel, F.f. Door (wht)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65935-14		Liner, F.f. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-2		Gasket, Door		Appelez-nous	-
4	69168-4		Handle, Door (wht)				$ 69.03
4	69477-1		Clip		Appelez-nous	-
4	69922-1		Plug Button, Handle (wht)		Appelez-nous	-
4	65275-60		Screw		Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
6	29936-2		Tray, Butter		Appelez-nous	-
7	66184-395		Door, Dairy		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-22)				$ 129.55
9	WP61003045		Trim, Door Shelf   (Replaces: 65151-93)				$ 129.55
10	WP61003045		Trim, Door Shelf   (Replaces: 65151-111)				$ 129.55
11	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
12	403100-1		Screw		Appelez-nous	-
12	67714-6		Hinge, Lower		Appelez-nous	-
13	60626-1		Shim, Lower Hinge		Appelez-nous	-
14	68788-1		Hinge Pin		Appelez-nous	-
15	67483-4		Washer		Appelez-nous	-
16	65790-3		Tapping Plate		Appelez-nous	-
16	403100-1		Screw		Appelez-nous	-
17	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
