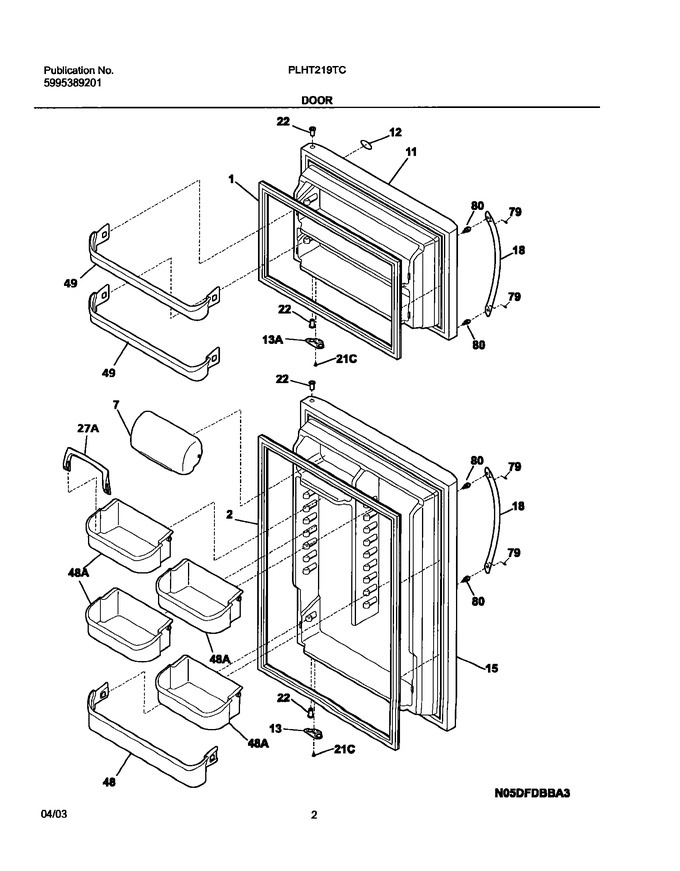

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240338313 | Door-dairy (Replaces: 240338311) |
|
Immediately | $ 80.80 | ||||
| 11 | 240450317 | Panel-frzr Door,stainless Steel ,complete Assy |
|
- | |||||
| 12 | 240558801 | Nameplate,aluminum |
|
$ 23.00 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 240450419 | Panel-refr Door,stainless Steel ,complete Assy |
|
$ 696.83 | |||||
| 18 | 240413701 | Handle-door,stainless Steel ,with Insert |
|
- | |||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495807 | Bin-door,pseudo ,frzr |
|
$ 87.98 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503) |
|
Immediately | $ 18.60 | ||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 21.27 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 27A | 240396105 | Retainer,tall Bottle |
|
- | |||||
| 48A | 241808201 | Bin-door,gallon ,aqua (Replaces: 240338208) |
|
Immediately | $ 79.97 | ||||
| F1 | 242193211 | Gasket,seal ,black ,frzr Door ,magnetic (Replaces: 240514611) |
|
$ 187.11 | |||||
| F2 | 241872512 | Gasket,seal ,black ,refr Door ,magnetic (Replaces: 240514612) |
|
Immediately | $ 165.39 | ||||
| NI | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 |
