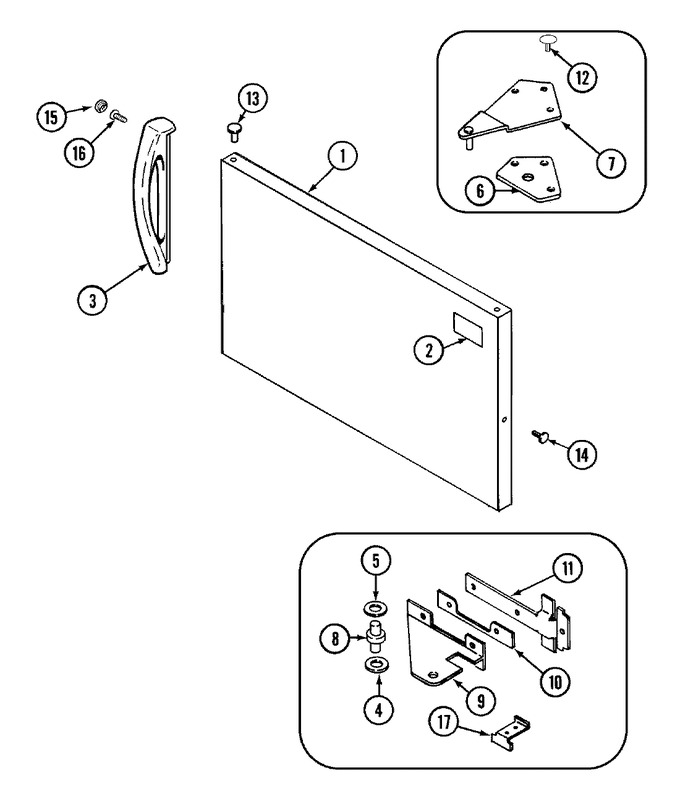

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001743		Panel, Frz. Door (alm)	11	Appelez-nous	-
2	66982-32		Nameplate (alm)	11	Appelez-nous	-
3	61001718		Handle, Door (alm)	11	Appelez-nous	-
4	54233-1		Washer	11			$ 7.71
5	67483-6		Washer	11	Appelez-nous	-
6	65031-1		Shim, Upper Hinge	11	Appelez-nous	-
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	11			$ 7.00
7	53709-24		Hinge, Upper	11	Appelez-nous	-
8	69517-2		Pin, Center Hinge	11	Appelez-nous	-
9	69514-3		Hinge	11	Appelez-nous	-
9	65275-62		Screw	11	Appelez-nous	-
10	69515-1		Shim, Center Hinge	11	Appelez-nous	-
11	69419-1		Tapping Plate, Center Hinge	11	Appelez-nous	-
11	65275-61		Screw	11	Appelez-nous	-
12	56144-9		Plug Button, Hinge Screw (alm)	11	Appelez-nous	-
13	67634-3		Plug Button, Hinge Cup (alm)	11	Appelez-nous	-
14	69480-4		Plug Button (alm)	11	Appelez-nous	-
15	69922-2		Plug, Button (alm)	11	Appelez-nous	-
16	65275-70		Screw	11	Appelez-nous	-
17	65275-48		Screw	11	Appelez-nous	-
17	69256-2		Stop, Door	11	Appelez-nous	-
