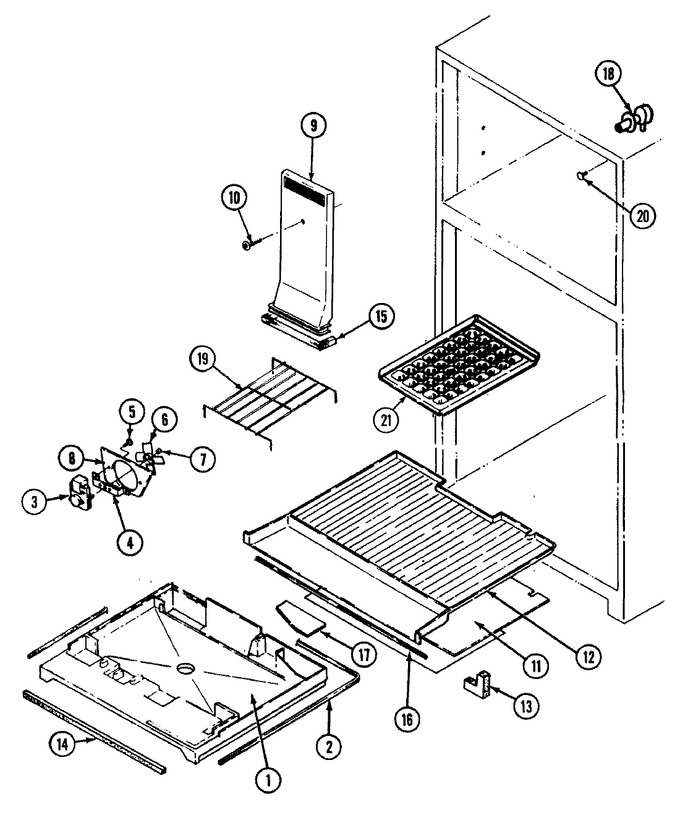

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69401-1		Tray, Styrofoam Mullion	12	Appelez-nous	-
2	69414-1		Seal, Mullion Tray	12	Appelez-nous	-
3	69106-2		Motor, Evaporator Fan	12			$ 95.45
3	406062-1		Screw	12	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	12	Appelez-nous	-
5	W11233072		Screw   (Replaces: 400015-36)	12		Immediately	$ 12.62
6	69107-1		Blade, Evaporator Fan	12	Appelez-nous	-
7	420092-900		Washer, Spring	12	Appelez-nous	-
8	60608-2		Orifice, Fan Blade	12	Appelez-nous	-
9	68592-2		Tunnel, Air	12	Appelez-nous	-
10	W11233072		Screw   (Replaces: 400015-31)	12		Immediately	$ 12.62
11	66403-1		Cover, Evaporator	12	Appelez-nous	-
12	69395-1		Bottom, Frz.	12	Appelez-nous	-
13	68946-1		Seal	12	Appelez-nous	-
14	69562-1		Seal, Mullion Tray (front)	12	Appelez-nous	-
15	66325-34		Seal, Air Tunnel----na	12	Appelez-nous	-
16	69413-1		Magnet	12	Appelez-nous	-
17	66480-4		Cover, Plenum	12	Appelez-nous	-
18	68307-1		Grommet, Water Entry	12	Appelez-nous	-
19	68259-8		Trivet	12	Appelez-nous	-
20	70146-3		Plug Button (alm)	12	Appelez-nous	-
21	68187-1		Cap, Connector	12	Appelez-nous	-
21	WP841180A		Tray, Ice   (Replaces: 59281-2)	12		Immediately	$ 41.00
21	68387-1		Cap, Grommet	12	Appelez-nous	-
