01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

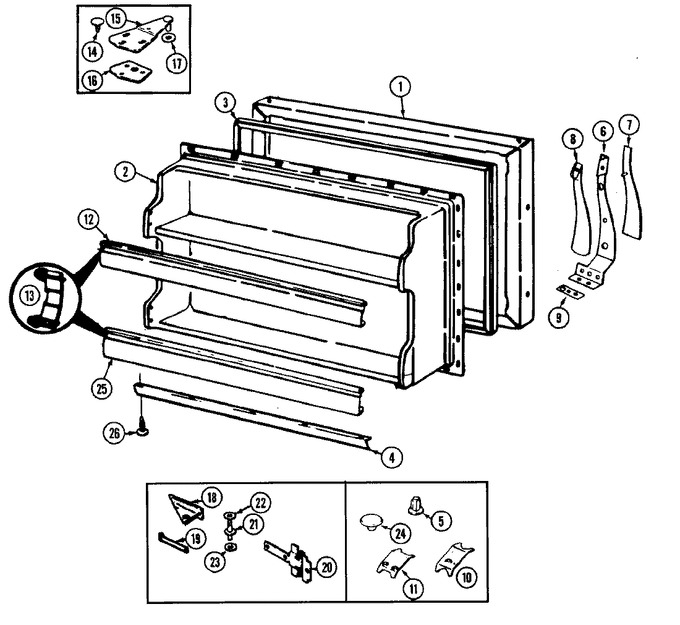

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-5-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	69466-1		Liner		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	70020-3		Gasket, Door		Appelez-nous	-
4	68544-1		Seal, Secondary		Appelez-nous	-
4	66982-31		Nameplate (wht)		Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
6	69300-2		Handle, Door		Appelez-nous	-
6	65275-57		Screw		Appelez-nous	-
7	68959-1		Insert		Appelez-nous	-
8	60445-3		Insert, Handle (back)		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
9	69301-1		Shim, Handle		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
15	53709-20		Hinge, Upper		Appelez-nous	-
16	65031-1		Shim, Upper Hinge		Appelez-nous	-
17	54233-7		Washer		Appelez-nous	-
18	68811-2		Hinge, Center		Appelez-nous	-
18	65275-62		Screw		Appelez-nous	-
19	69515-1		Shim, Center Hinge		Appelez-nous	-
20	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
21	69517-1		Pin, Center Hinge		Appelez-nous	-
22	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
23	54233-2		Washer		Appelez-nous	-
24	56186-10		Plug Button, (white)		Appelez-nous	-
25	WP61003045		Trim, Door Shelf   (Replaces: 65151-348)				$ 129.55
26	69256-2		Stop, Door		Appelez-nous	-
26	56686-5		Clip, Secondary Seal		Appelez-nous	-
