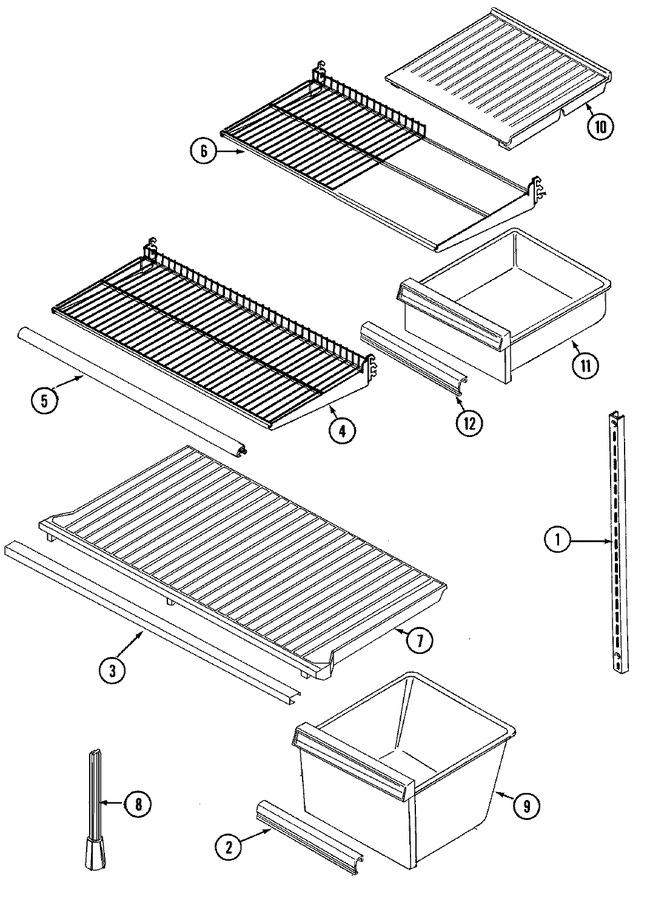

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)	11	Appelez-nous	-
1	400037-28		Screw	11	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	11	Appelez-nous	-
2	70315-24		Trim, Meat Pan	11	Appelez-nous	-
3	61001522		Trim, Crisper Shelf	11	Appelez-nous	-
4	70105-4		Shelf, Full	11	Appelez-nous	-
5	61001179		Trim, Shelf	11	Appelez-nous	-
6	61001180		Shelf, Full	11	Appelez-nous	-
7	61001583		Shelf, Crisper (w/trim)	11	Appelez-nous	-
8	12001957		Support, Crisper Shelf   (Replaces: 66105-1)	11			$ 3.35
9	61001181		Pan, Crisper	11	Appelez-nous	-
10	60075-7		Cover, Meat Pan	11	Appelez-nous	-
11	66490-5		Pan	11	Appelez-nous	-
12	70315-25		Trim, Meat Pan	11	Appelez-nous	-
