SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit


08 - Shelves & Accessories


09 - Unit Compartment & System

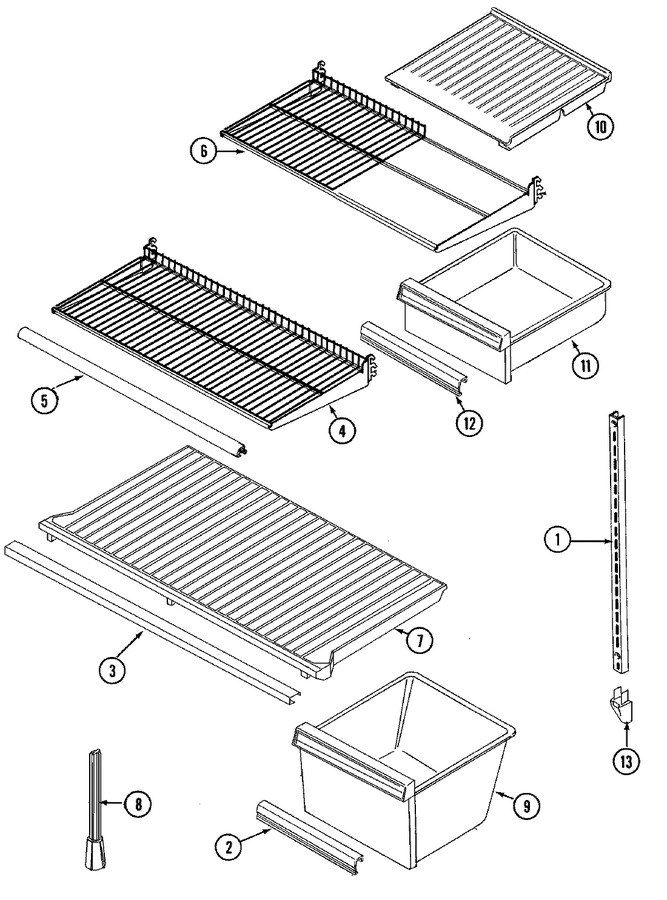

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
1	400037-28		Screw	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
2	70315-24		Trim, Meat Pan	10	Appelez-nous	-
3	60454-9		Trim, Crisper Shelf	10	Appelez-nous	-
4	70105-4		Shelf, Full	10	Appelez-nous	-
5	61001179		Trim, Shelf	10	Appelez-nous	-
6	61001180		Shelf, Full	10	Appelez-nous	-
7	66834-1		Shelf, Crisper	10	Appelez-nous	-
8	12001957		Support, Crisper Shelf   (Replaces: 66105-1)	10			$ 3.35
9	61001181		Pan, Crisper	10	Appelez-nous	-
10	60075-7		Cover, Meat Pan	10	Appelez-nous	-
11	66490-5		Pan	10	Appelez-nous	-
12	70315-25		Trim, Meat Pan	10	Appelez-nous	-
13	60340-1		End Cap, Center Rail	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
