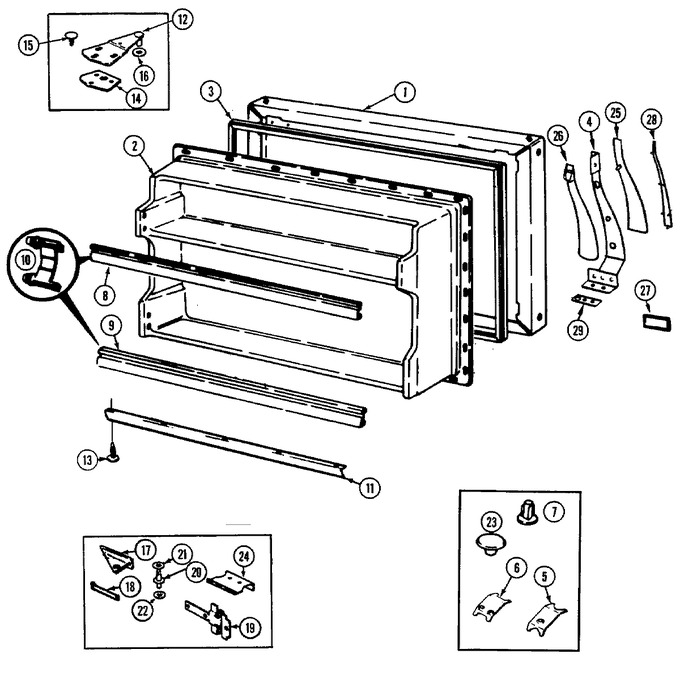

1	72345-5-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	69466-1		Liner		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	70020-3		Gasket, Door		Appelez-nous	-
4	69300-1		Handle, Door		Appelez-nous	-
4	9986-122		Screw		Appelez-nous	-
5	69257-1		Clip, Handle		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	55782-6		Plug Button (almond)		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
9	WP61003045		Trim, Door Shelf   (Replaces: 65151-349)				$ 129.55
10	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
11	68544-1		Seal, Secondary		Appelez-nous	-
12	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
12	53709-20		Hinge, Upper		Appelez-nous	-
13	52447-4		Clip		Appelez-nous	-
14	65031-1		Shim, Upper Hinge		Appelez-nous	-
15	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
16	54233-1		Washer				$ 7.71
17	68811-2		Hinge, Center		Appelez-nous	-
17	65275-55		Screw		Appelez-nous	-
18	68812-1		Shim, Center Hinge		Appelez-nous	-
19	60622-1		Tapping Plate		Appelez-nous	-
20	69517-1		Pin, Center Hinge		Appelez-nous	-
21	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
22	54233-1		Washer				$ 7.71
23	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
24	65275-48		Screw		Appelez-nous	-
24	69256-2		Stop, Door		Appelez-nous	-
25	68959-2		Insert		Appelez-nous	-
26	60445-4		Insert, Handle (back)		Appelez-nous	-
27	66982-32		Nameplate (alm)		Appelez-nous	-
29	65275-53		Screw		Appelez-nous	-
29	69301-1		Shim, Handle		Appelez-nous	-
