01 - Cover

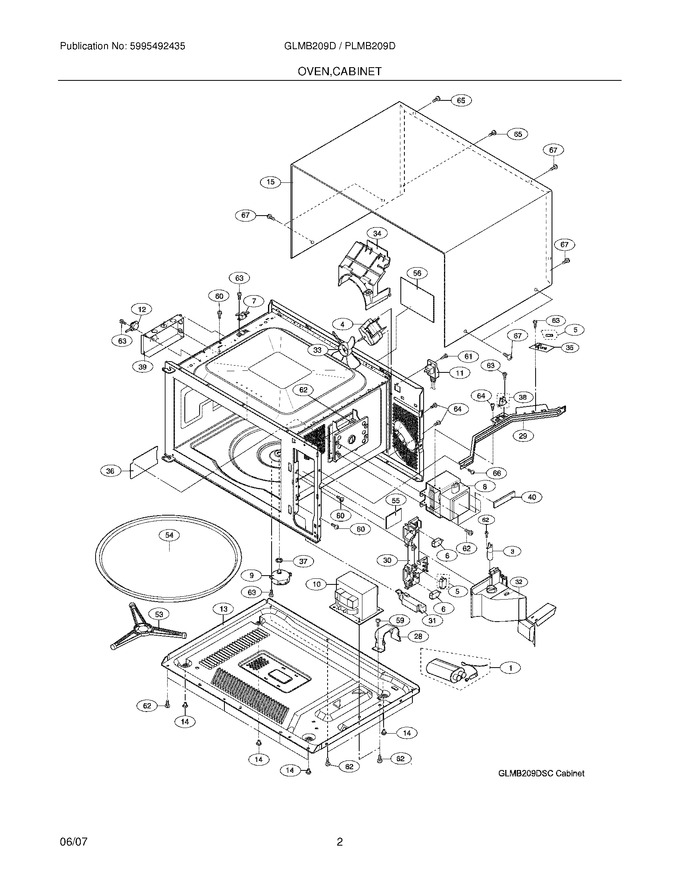

03 - Oven/cabinet


05 - Control Panel/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304440814		Base,unit Chassis				$ 105.26
14	5304440815		Foot,cabinet Support		Appelez-nous	-
15	5304440816		Cabinet,outer Casing ,black				$ 205.20
28	5304440838		Retainer,capacitor Strap				$ 8.77
29	5304462313		Bracket,chassis Support		Appelez-nous	-
30	5304503439		Latch Hook   (Replaces: 5304440840)			Immediately	$ 60.62
31	5304485407		Lever,door Release   (Replaces: 5304440841)				$ 63.36
32	5304440842		Duct,magnetron		Appelez-nous	-
34	5304440844		Duct,cooling Fan		Appelez-nous	-
36	5304462314		Cover,waveguide				$ 60.17
37	5304440288		Bushing,motor Shaft ,turntable				$ 16.45
39	5304440847		Duct,ah Sensor		Appelez-nous	-
40	5304441910		Cushion,magnetron Pad		Appelez-nous	-
53	5304467717		Support Assy,turntable   (Replaces: 5304440284)				$ 122.18
54	5304529482		Tray,turntable ,glass   (Replaces: 5304440868)				$ 108.44
55	5304440334		Label,caution-monitor		Appelez-nous	-
56	5304440333		Label,caution-dhhs		Appelez-nous	-
59	5303319636		Screw		Appelez-nous	-
60	5303319641		Screw				$ 12.76
61	5304462315		Screw,4 Mm X 12 Mm ,ground		Appelez-nous	-
62	5304440340		Screw,4mm X 12mm		Appelez-nous	-
63	5304453725		Screw,3mm X 8mm		Appelez-nous	-
64	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
65	5304440873		Screw,torx Head ,tamper Proof				$ 11.34
66	5304462316		Screw		Appelez-nous	-
67	5304452261		Screw,black ,outer Casing		Appelez-nous	-
67	5304451553		Screw,outer Casing				$ 14.89
F1	5304487566		Capacitor Assy,hv ,w/rectifier   (Replaces: 5304462258)			Immediately	$ 122.62
F10	5304492212		Transformer,power   (Replaces: 5304457167)				$ 239.29
F11	5304440784		Power Cord,electric				$ 120.49
F12	5304440785		Sensor,humidity ,cook Control				$ 56.18
F3	5304500304		Lamp Assy,with Socket   (Replaces: 5304440779)				$ 63.79
F33	5304440843		Fan Blade,cooling Fan				$ 37.75
F35	5304492543		Filter,noise ,electronic   (Replaces: 5304451818)				$ 81.18
F38	5303319550		Fuse,magnetron				$ 117.23
F4	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F5	5303319559		Switch,monitor ,w/ceramic Fuse				$ 85.43
F6	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F7	5304440780		Fuse,cavity Temp ,20 Amp ,250 V				$ 85.76
F8	5304521745		Magnetron   (Replaces: 5304440781)				$ 189.05
F9	5304448832		Motor,turntable			Immediately	$ 74.09
