SELECT A DIAGRAM

01 - Cover


03 - Oven,cabinet

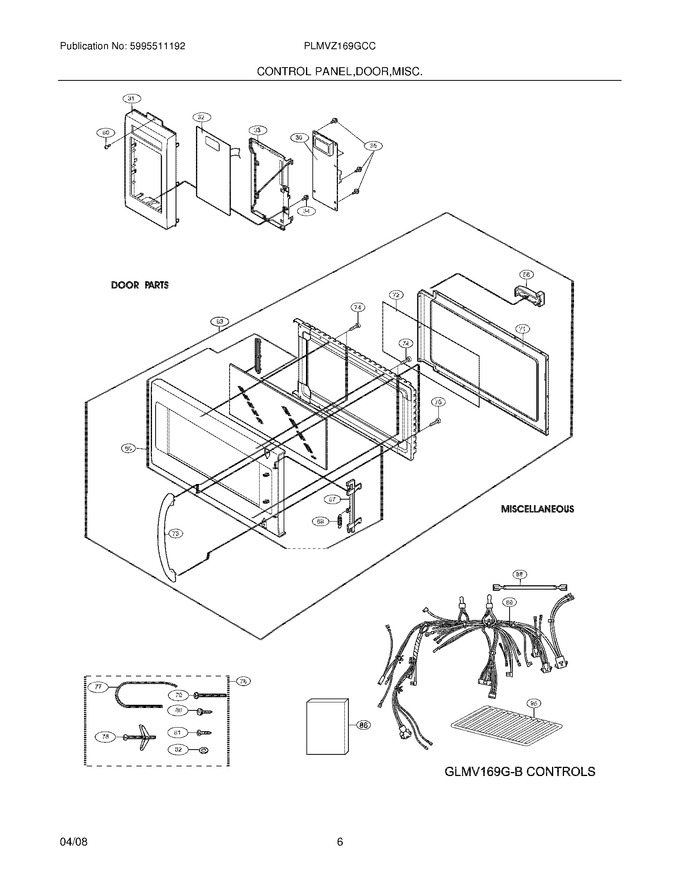

05 - Control Panel,door,misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304461361		Frame,control Panel ,stainless Steel				$ 254.32
33	5304440281		Panel,control Mount				$ 33.39
33	5304461365		Panel,control Mount		Appelez-nous	-
34	5304458568		Screw,3 Mm X 10 Mm		Appelez-nous	-
35	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
56	5304440300		Door Stop		Appelez-nous	-
65	5304466769		Frame Assembly,door ,stainless ,w/glass & Latch				$ 172.57
67	5304440314		Latch,door			Immediately	$ 51.13
69	5304440316		Spring,door Latch			Immediately	$ 61.00
71	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
72	5304440321		Seal,door ,film		Appelez-nous	-
73	5304456145		Handle,door ,stainless Steel		Appelez-nous	-
74	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
75	5304458213		Screw,4 Mm X 12 Mm		Appelez-nous	-
76	5304464349		Hardware,installation ,kit			Immediately	$ 57.11
77	5303318761		Sleeve,power Cord ,grommet				$ 25.05
78	5303318762		Screw,toggle				$ 11.71
79	5304453895		Screw,5mm X 85mm				$ 16.68
80	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
81	5304453723		Screw,5mm X 35mm				$ 13.28
82	5303318766		Washer,flat ,30mm ,(2)				$ 19.74
86	5304451830		Template,installation ,top		Appelez-nous	-
86	5304464350		Template,installation ,wall				$ 26.62
95	5304440338		Rack,microwave Oven ,wire				$ 256.10
F30	5304440245		Control Board,printed Circuit		Appelez-nous	-
F32	5304443989		Touch Control,key Pad ,black				$ 163.02
F63	5304461371		Door Assy,stainless ,w/handle				$ 308.74
F88	5304440331		Wire,high Voltage-a		Appelez-nous	-
F89	5304461378		Wiring Harness,main-a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
