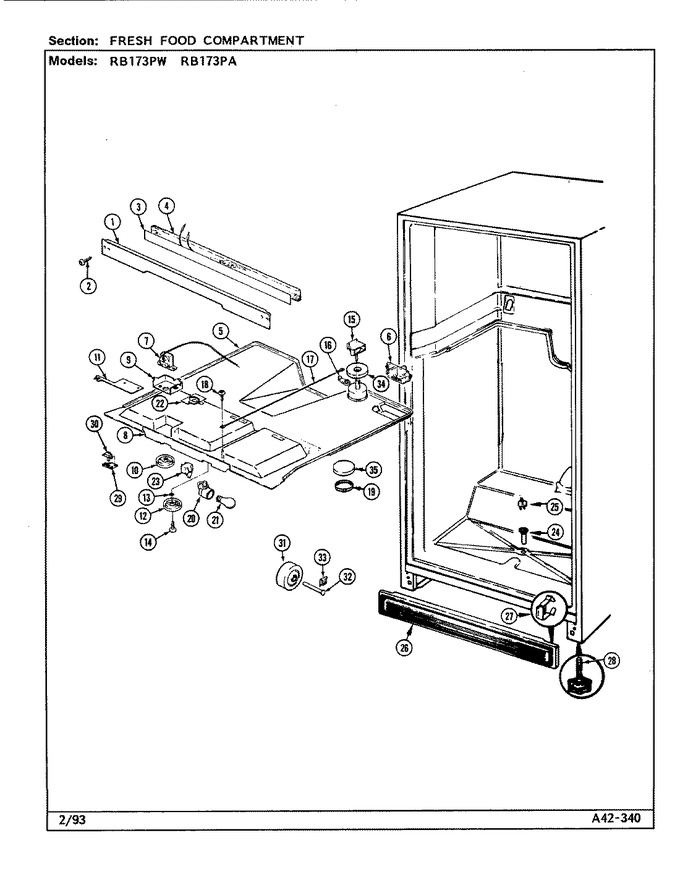

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Optional Ice Maker


03 - Shelves & Accessories


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
1	400037-28		Screw		Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
2	60340-1		End Cap, Center Rail		Appelez-nous	-
3	60570-49		Frame, Shelf		Appelez-nous	-
4	60570-36		Frame, Shelf		Appelez-nous	-
5	68139-15		Glass, Split Shelf		Appelez-nous	-
5	68139-21		Glass, Meat Shelf		Appelez-nous	-
6	68139-20		Glass, Split Shelf		Appelez-nous	-
7	68136-58		Trim, Shelf		Appelez-nous	-
7	68136-45		Shelf Trim		Appelez-nous	-
8	68136-57		Trim, Shelf		Appelez-nous	-
9	65276-2		Trim, Split Shelf (rear)		Appelez-nous	-
10	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
11	66333-1		Clip, Shelf Trim		Appelez-nous	-
12	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
13	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-
14	66516-8		Pan, Meat		Appelez-nous	-
15	60132-123		Trim, Crisper		Appelez-nous	-
16	66644-2		Shelf, Crisper		Appelez-nous	-
17	60454-9		Trim, Crisper Shelf		Appelez-nous	-
18	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
19	68221-645		Pan, Crisper		Appelez-nous	-
19	68221-643		Pan, Crisper		Appelez-nous	-
20	60132-122		Trim, Crisper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
