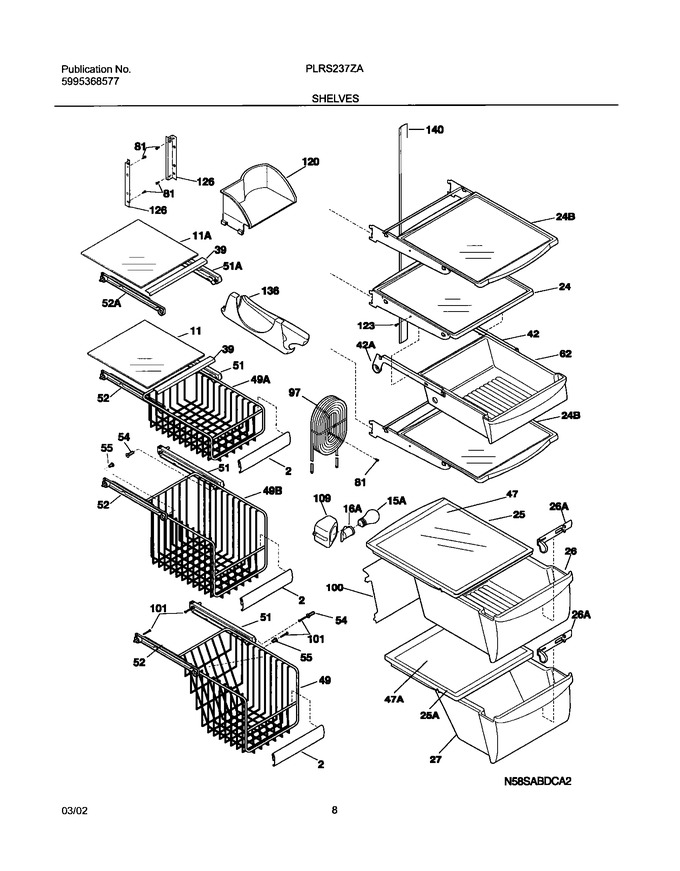

09 - Shelves


11 - Controls


13 - System


15 - Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434601		Trim-basket		Appelez-nous	-
11	240350648		Shelf-freezer,glass ,lower		Appelez-nous	-
24	240355201		Shelf-``spill-safe``,fixed ,(3)				$ 301.14
25	240354502		Cover-crisper Pan,upper   (Replaces: 240354501)			Immediately	$ 100.02
26	240354723		Pan-crisper,upper   (Replaces: 240354705)			Immediately	$ 164.31
27	240354805		Pan-crisper,lower				$ 167.69
39	240367601		Trim-shelf,front				$ 64.31
42	240356501		Hanger-meat Pan,rh			Immediately	$ 56.70
47	240350613		Insert-pan Cover,glass				$ 123.62
49	240338401		Basket-sliding		Appelez-nous	-
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
54	240351901		Plug-hanger,right Hand		Appelez-nous	-
55	240352001		Plug-hanger,left Hand		Appelez-nous	-
62	240355527		Pan-meat   (Replaces: 240355505)				$ 184.06
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240453003)				$ 280.67
100	240326303		Cover-water Tank   (Replaces: 240326301)				$ 61.28
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
109	240351301		Base-crisper Light Socket				$ 15.65
120	240342901		Shelf-ice Cream   (Replaces: 240342902)				$ 39.69
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
136	241657701		Dispenser-can,clear   (Replaces: 240424502)				$ 57.41
140	240430501		Channel,water Tube Cvr				$ 97.81
11A	240350647		Shelf-freezer,glass ,upper				$ 175.14
15A	215812200		Light Bulb/lamp,25w				$ 16.54
16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
24B	240355277		Shelf-``spill-safe```sliding ,(3)   (Replaces: 240350103)				$ 213.87
25A	240354602		Cover-crisper Pan,lower   (Replaces: 240354601)			Immediately	$ 88.46
26A	240351101		Control-humidity			Immediately	$ 43.95
42A	240350001		· Spring-meat Pan Rail				$ 76.55
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 58.12
47A	240350614		Insert-pan Cover,glass				$ 145.60
49A	240338501		Basket-sliding,upper ,half		Appelez-nous	-
49B	240338503		Basket-sliding,upper ,full		Appelez-nous	-
51A	240395502		Hanger-basket,rh				$ 73.00
52A	240395602		Hanger-basket,lh				$ 61.66
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240389604		Service Data Sheet		Appelez-nous	-
