SELECT A DIAGRAM

01 - Cover

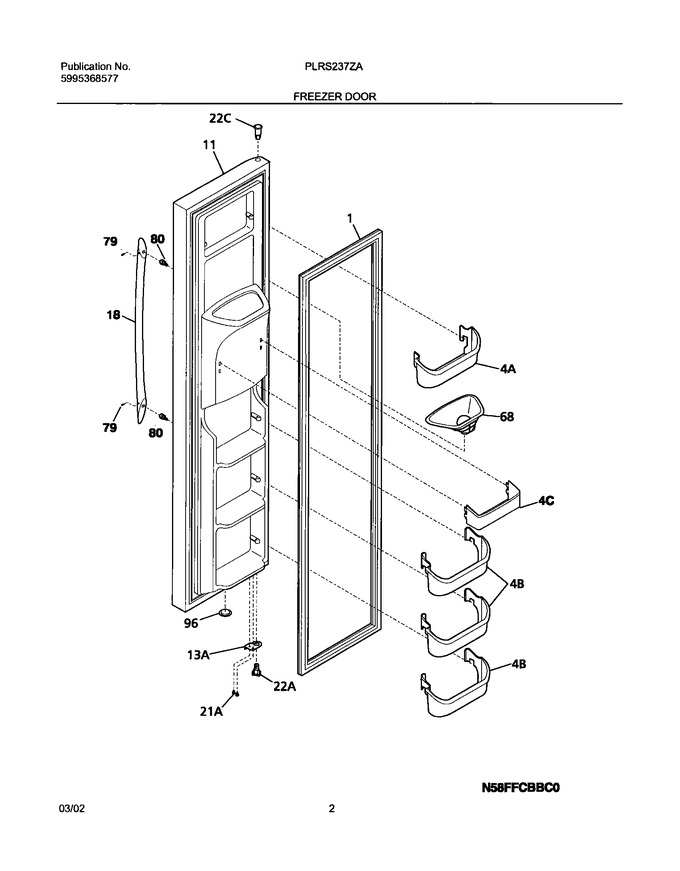

03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240451835		Door-frzr,stainless Steel ,complete Assy		Appelez-nous	-
18	240409801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
68	240465801		Chute-ice		Appelez-nous	-
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755501)			Immediately	$ 18.60
96	240345506		Plug,door Foam Hole ,black				$ 51.87
13A	5303918455		Door Stop,black,frzr   (Replaces: 240537106)				$ 142.04
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22A	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
4A	240367302		Bin-door,frzr-upper				$ 138.65
4B	240359002		Bin-door				$ 99.78
4C	240358402		Bin-door,frzr-dispenser		Appelez-nous	-
F1	241786016		Gasket-frzr Door,black ,magnetic   (Replaces: 240390608)				$ 93.12
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	240323202		Harness-wiring,door		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352101)				$ 73.71
NI	240470401		Connector-amp		Appelez-nous	-
NI	5303918256		Dispenser Heater Kit				$ 474.16

    View Diagram in Separate Window       Print Part List
