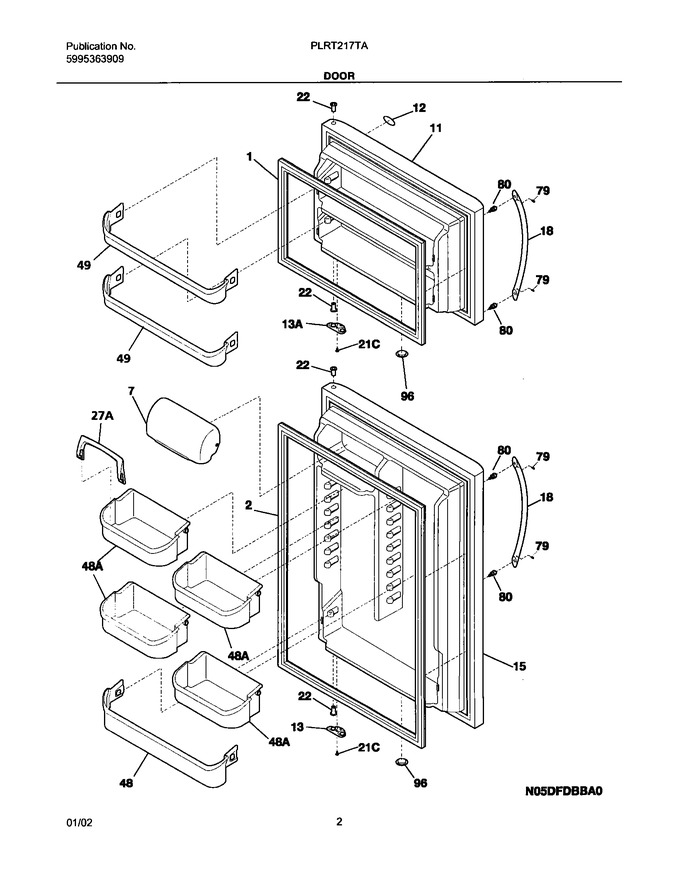

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
11	240450317		Panel-frzr Door,stainless Steel ,complete Assy		Appelez-nous	-
12	240449704		Nameplate,black				$ 72.54
13	240312422		Door Stop,black ,ref   (Replaces: 240312405)				$ 15.17
15	240450419		Panel-refr Door,stainless Steel ,complete Assy				$ 696.83
18	240413701		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
22	5304507147		Bearing-hinge,black ,(8)   (Replaces: 240311202)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495805		Bin-door,clear ,frzr   (Replaces: 240337802)				$ 50.94
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755501)			Immediately	$ 18.60
96	240345506		Plug,door Foam Hole ,black				$ 51.87
13A	240312415		Door Stop,black ,frzr   (Replaces: 240312406)				$ 21.27
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
27A	240396102		Retainer,tall Bottle				$ 19.13
48A	241808201		Bin-door,gallon   (Replaces: 240430301)			Immediately	$ 79.97
F1	242193211		Gasket-frzr Door,black ,magnetic   (Replaces: 240514611)				$ 187.11
F2	241872512		Gasket-refr Door,black ,magnetic   (Replaces: 240514612)			Immediately	$ 165.39
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27

    View Diagram in Separate Window       Print Part List
