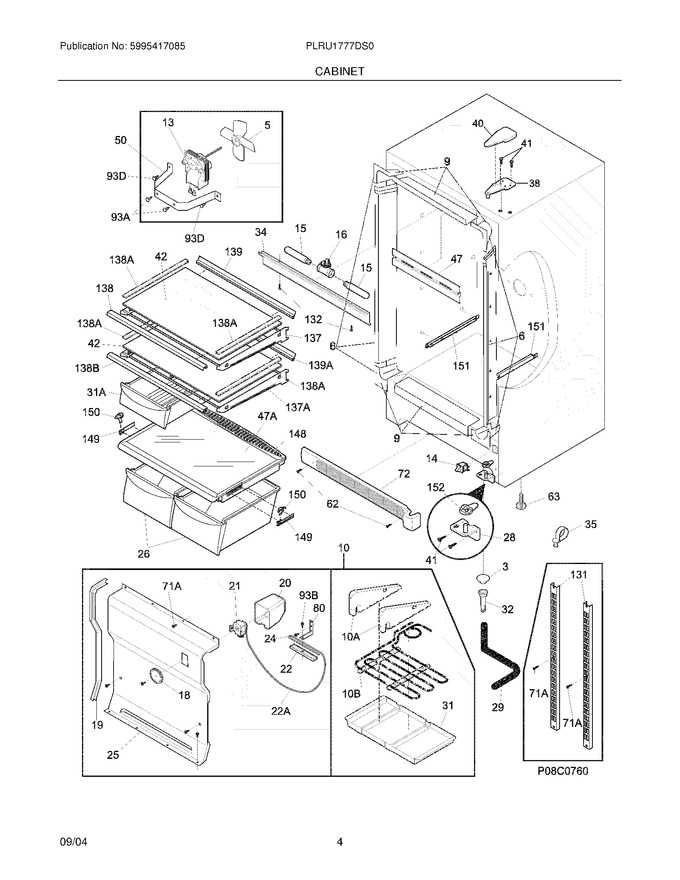

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604200		Breaker Kit W/corners				$ 227.12
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
10	216741000		Heater-drain Pan Assy,tubing ,formed		Appelez-nous	-
14	216922800		Switch,light/lamp ,ramp				$ 12.22
15	5304517886		Light Bulb/lamp,long ,frosted ,40 W ,120v,(2)   (Replaces: 216988000)			Immediately	$ 73.06
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
18	216707200		Knob,temp Control				$ 44.10
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	216230300		Cover, Temp Control				$ 49.88
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216949705		Cover-evaporator		Appelez-nous	-
26	216959900		Pan-crisper,(2)				$ 169.68
28	216978200		Hinge,bracket, Lower ,rh				$ 48.93
29	5304512272		Hose-drain   (Replaces: 216313503)			Immediately	$ 15.90
31	216732400		Pan-drain				$ 208.48
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216979500		Shield-light		Appelez-nous	-
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	216809001		Cover-upper Hinge,black				$ 13.70
41	216936800		Screw-hinge,12-24x.700 Hwh ,btm		Appelez-nous	-
42	297265900		Glass-shelf,full Shelf   (Replaces: 216983101)				$ 156.15
47	216661601		Baffle-plate				$ 51.76
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	216946601		Grille/kickplate,32`` ,black		Appelez-nous	-
80	06594601		Bracket, Control				$ 17.64
131	216971200		Channel-shelf Mtg,back ,(2)		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
137	297050600		Frame-shelf,cantilever   (Replaces: 216983300)			Immediately	$ 179.29
138	216983400		Trim-shelf,front		Appelez-nous	-
139	216983500		Trim-shelf,rear		Appelez-nous	-
148	216995501		Cover-crisper Pan		Appelez-nous	-
149	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
150	5304492617		Knob,humidity Cont.   (Replaces: 240361202)			Immediately	$ 8.69
151	216988201		Support-crspr Cover,lh				$ 67.33
151	216988200		Support-crspr Cover,rh				$ 68.04
152	216974600		Bearing,hinge Closer				$ 16.36
10A	216710400		Bracket,(2) ,top Drain Pan		Appelez-nous	-
10B	216710500		Bracket,(2) ,btm. Drain Pan				$ 35.91
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
31A	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
47A	240350608		Insert-pan Cover,glass   (Replaces: 240350650)			Immediately	$ 45.50
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
93B	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93D	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F137	216983301		Frame-shelf,cantilever		Appelez-nous	-
F138	216983401		Trim-shelf,front		Appelez-nous	-
F138	216983600		Trim-shelf,side		Appelez-nous	-
F139	216983501		Trim-shelf,rear		Appelez-nous	-
F21	5304492453		Control Temperature   (Replaces: 216715500)			Immediately	$ 269.25
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	297002600		Gasket,light Socket		Appelez-nous	-
NI	216697904		Energy Guide		Appelez-nous	-
NI	216504500		Screw,ab ,8-18x.500 ,(4)		Appelez-nous	-
NI	216742701		Screw,8-18 X 9/16 ,black ,(4)		Appelez-nous	-
