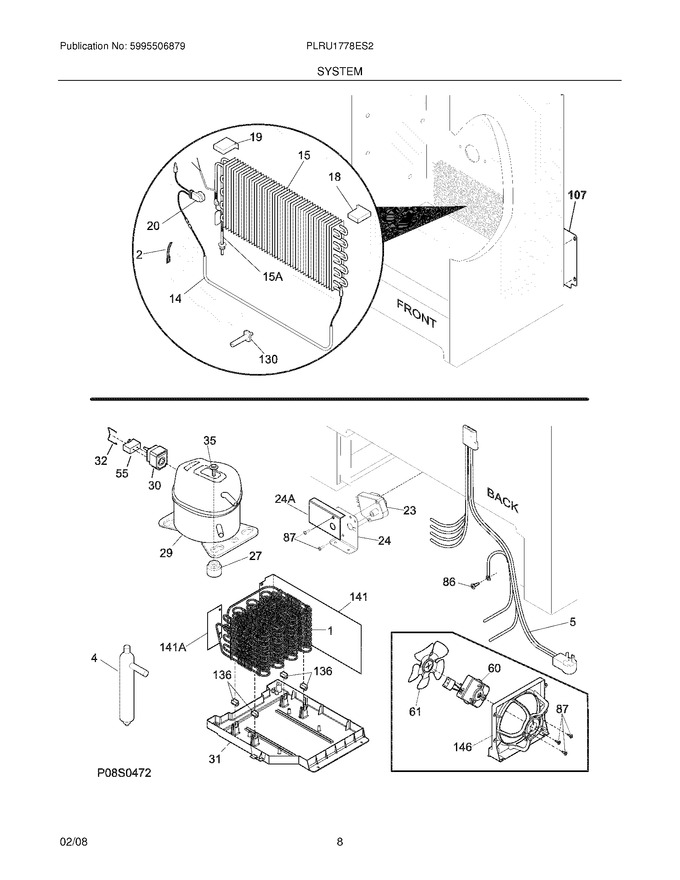

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| 18 | 297078700 | Insulator-evap,styrofoam |
|
$ 8.14 | |||||
| 19 | 297078800 | Insulator-evap,styrofoam |
|
$ 2.32 | |||||
| 20 | 216731001 | Thermostat, Defrost |
|
Immediately | $ 81.75 | ||||
| 24 | 216968501 | Bracket-timer |
|
$ 74.70 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216954208 | Controller,compressor ,5 Speed |
|
$ 74.42 | |||||
| 31 | 297165800 | Pan-drain |
|
$ 89.15 | |||||
| 32 | 297030500 | Clip,controller |
|
Immediately | $ 12.05 | ||||
| 35 | 297177200 | Bolt,compressor ,(4) |
|
- | |||||
| 55 | 297286812 | Capacitor,run ,10mf (Replaces: 216985000) |
|
Immediately | $ 11.78 | ||||
| 60 | 297279500 | Motor-condenser Fan (Replaces: 241584301) |
|
Immediately | $ 141.66 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 87 | 5304463290 | Screw,hi-lo Blunt ,no.8-18x1/2 ,timer Bracket |
|
- | |||||
| 107 | 297165400 | Shield,compressor ,compartment |
|
$ 19.85 | |||||
| 130 | 216486800 | Support,evaporator Mtg |
|
- | |||||
| 136 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 141 | 297164200 | Divider,air Flow |
|
$ 26.23 | |||||
| 146 | 297164000 | Shroud-fan Orfice |
|
$ 76.97 | |||||
| 141A | 297194700 | Divider,small ,air Flow |
|
- | |||||
| 15A | 297217900 | Heat Exchanger (Replaces: 216751100) |
|
Immediately | $ 91.82 | ||||
| 24A | 297207900 | Guard,timer |
|
$ 5.72 | |||||
| F1 | 297152200 | Condenser,dynamic |
|
$ 171.33 | |||||
| F15 | 297414901 | Evaporator (Replaces: 216997300) |
|
Immediately | $ 171.34 | ||||
| F23 | 5304518034 | Timer-defrost (Replaces: 216744500) |
|
Immediately | $ 57.55 | ||||
| F29 | 5304507767 | Compressor,w/o Electricals (Replaces: 297224800) |
|
$ 726.41 | |||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 31.67 | ||||
| F5 | 297171800 | Harness-main |
|
$ 54.08 | |||||
| FNI | 297366805 | Cord-power,flat (Replaces: 297169901) |
|
$ 68.68 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| NI | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 |
