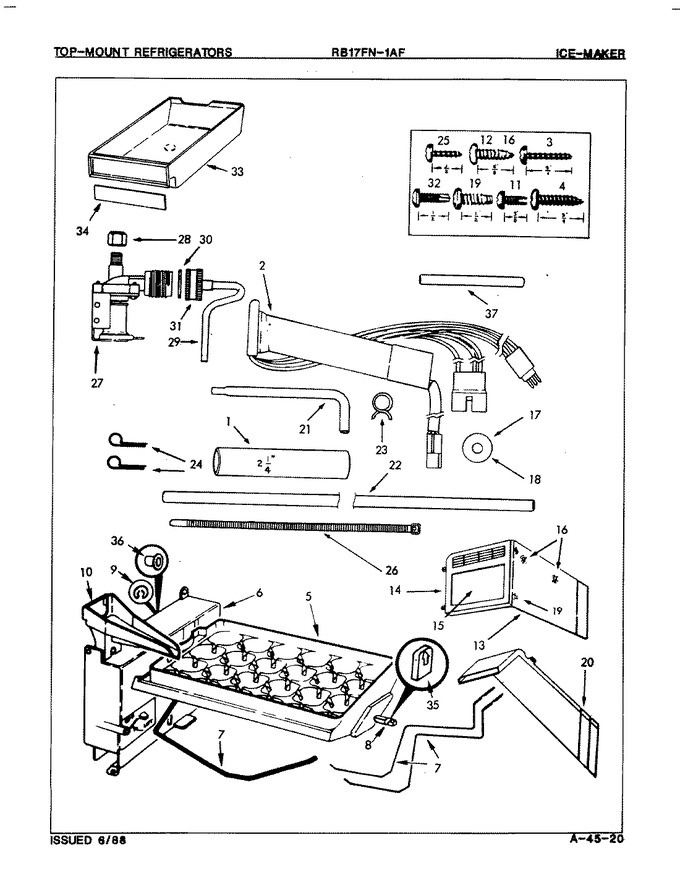

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58461-3		Tube, Fill		Appelez-nous	-
2	60198-1		Wire Harness		Appelez-nous	-
3	WP67006908		Screw   (Replaces: 400022-1)			Immediately	$ 7.16
4	400084-103		Screw		Appelez-nous	-
5	WP59688-1A		Tray, Ice   (Replaces: 59688-1)				$ 18.71
6	RA43714-8		Mechanism, Ice Maker		Appelez-nous	-
7	60619-2		Sensor Arm		Appelez-nous	-
8	65319-1		Shaft, Drive		Appelez-nous	-
9	58706-1		Ring, Retainer		Appelez-nous	-
10	53748-1		Spout, Fill		Appelez-nous	-
11	405009-103		Screw		Appelez-nous	-
12	400018-103		Screw		Appelez-nous	-
13	60426-1		Side, Ice Maker Enclosure		Appelez-nous	-
14	65070-1		Front, Ice Maker Enclosure		Appelez-nous	-
15	60421-15		Trim		Appelez-nous	-
16	400018-103		Screw		Appelez-nous	-
17	420051-900		Washer		Appelez-nous	-
18	420052-900		Washer		Appelez-nous	-
19	W11233072		Screw   (Replaces: 402019-103)			Immediately	$ 12.62
20	65759-5		Im Duct		Appelez-nous	-
21	66759-2		Feeder Tube		Appelez-nous	-
22	WPB5705307		Tubing 62``   (Replaces: 55602-22)				$ 11.19
23	60333-1		Clamp, Spring		Appelez-nous	-
24	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
25	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
26	WPW10339879		Clamp   (Replaces: 57576-1)				$ 7.11
27	4318047		Valve, Water   (Replaces: 60184-1)			Immediately	$ 66.68
28	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
29	60219-1		Inlet Tubing Assembly		Appelez-nous	-
30	24685-5		Washer, Inlet Tubing Nut		Appelez-nous	-
31	24685-1		Nut, Inlet Tubing		Appelez-nous	-
32	WP250830		Screw   (Replaces: 401017-1)				$ 7.16
33	60588-1		Pan, Storage		Appelez-nous	-
34	68134-3		Insert		Appelez-nous	-
35	65318-1		Clip, Drive Shaft				$ 23.83
36	65317-1		Spacer		Appelez-nous	-
37	65001-14		Tubing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
