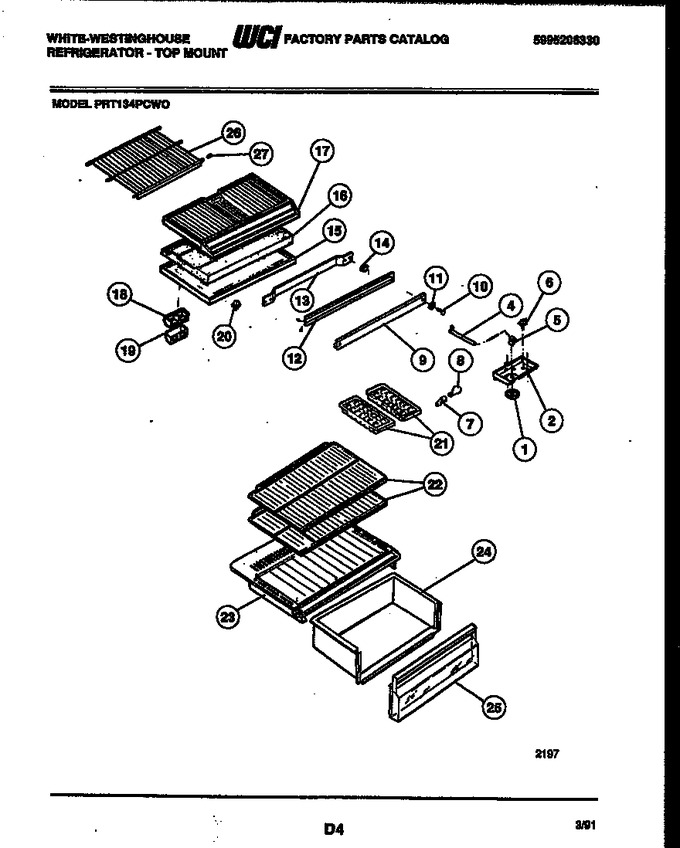

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209251 | Knob-temp Control |
|
- | |||||
| 2 | 3206320 | Control Box |
|
- | |||||
| 4 | 5303270923 | Hsg-cap Tube |
|
- | |||||
| 5 | 5303018894 | Control-temperature |
|
- | |||||
| 6 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 7 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 8 | 5303001179 | Light Bulb |
|
- | |||||
| 9 | 3206125 | Mullion, Almond |
|
- | |||||
| 10 | 3206134 | Screw-mullion (4) |
|
- | |||||
| 11 | 5308003607 | Washer, No. 10 Steel (2) |
|
$ 1.00 | |||||
| 12 | 3206120 | Heater-mullion |
|
- | |||||
| 13 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 14 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 15 | 5303270919 | Top Panel-refrig |
|
- | |||||
| 16 | 5303270921 | Divider, Styrofoam |
|
- | |||||
| 17 | 5303270920 | Bottom Panel-frzr |
|
- | |||||
| 18 | 5308014667 | Air Deflector |
|
- | |||||
| 19 | 5303001448 | Cover-deflector |
|
- | |||||
| 20 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 21 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 22 | 5303270894 | Shelf-sliding (2) |
|
- | |||||
| 23 | 5303270897 | Cover - Crisper |
|
$ 275.73 | |||||
| 24 | 5303209937 | Pan - Crisper |
|
$ 231.16 | |||||
| 25 | 3206106 | Front-crisper Pan |
|
- | |||||
| 26 | 5303270908 | Shelf-freezer |
|
- | |||||
| *46176 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| *46177 | 5304500407 | Grommet-shelf Mtg-lh (4) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| *46177 | 5304509705 | Grommet-shelf Mtg-rh (4) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 15A | 5303001380 | Screw |
|
- | |||||
| 16A | 5303272865 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 16B | 3205266 | Protector-edge (2) (non-illustrated) |
|
$ 80.09 | |||||
| 18A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 19A | 5303200590 | Extension-w/ Insulation (non-illustrated) |
|
- | |||||
| 2A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 5A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 6A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
