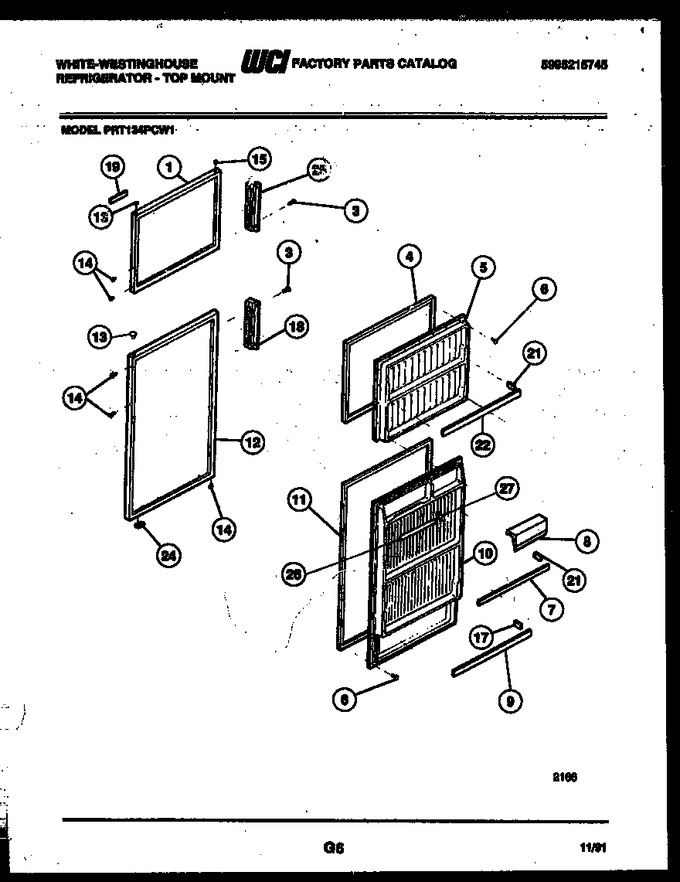

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916787 | Freezer Door-almd |
|
- | |||||
| 3 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4 | 5308007123 | Gasket-freezer |
|
$ 188.54 | |||||
| 5 | 5303270900 | Inner Panel-freezer |
|
- | |||||
| 6 | 5308002748 | Screw |
|
- | |||||
| 7 | 5303270904 | Door Rack-refr-upper |
|
- | |||||
| 8 | 3206149 | Dairy Door |
|
- | |||||
| 9 | 3206152 | Door Rack-refr-lower |
|
- | |||||
| 10 | 5303272863 | Inner Panel-refr |
|
- | |||||
| 11 | 5303271473 | Gasket-refrigerator |
|
- | |||||
| 12 | 5303916899 | Refrigerator Door-almd |
|
- | |||||
| 13 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 14 | 5308000181 | Plug - Almond |
|
- | |||||
| 15 | 5303001308 | Plug-almond (2) |
|
- | |||||
| 17 | 3206150 | End Cap-rh |
|
$ 12.58 | |||||
| 18 | 3206158 | Handle-refr |
|
- | |||||
| 19 | 3206159 | Nameplate Assy |
|
- | |||||
| 21 | 3206165 | End Cap-rh (3) |
|
Immediately | $ 8.19 | ||||
| 22 | 5303270901 | Door Rack-freezer (2) |
|
- | |||||
| 24 | 5308000255 | Door Stop (2) |
|
$ 42.20 | |||||
| 25 | 3206148 | Handle-freezer |
|
- | |||||
| 26 | 5303272864 | Door Rack-refrig |
|
- | |||||
| 27 | 3206156 | End Cap-rh |
|
- | |||||
| *56020 | 5303007739 | Insulation - Fiberglass - Bulk |
|
- | |||||
| 17A | 3206151 | End Cap-lh (non-illustrated) |
|
- | |||||
| 21A | 3206166 | End Cap-lh (3) |
|
Immediately | $ 9.93 | ||||
| 24A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 27A | 3206157 | End Cap-lh |
|
- |
