SELECT A DIAGRAM

01 - Top Mount Refrigerator

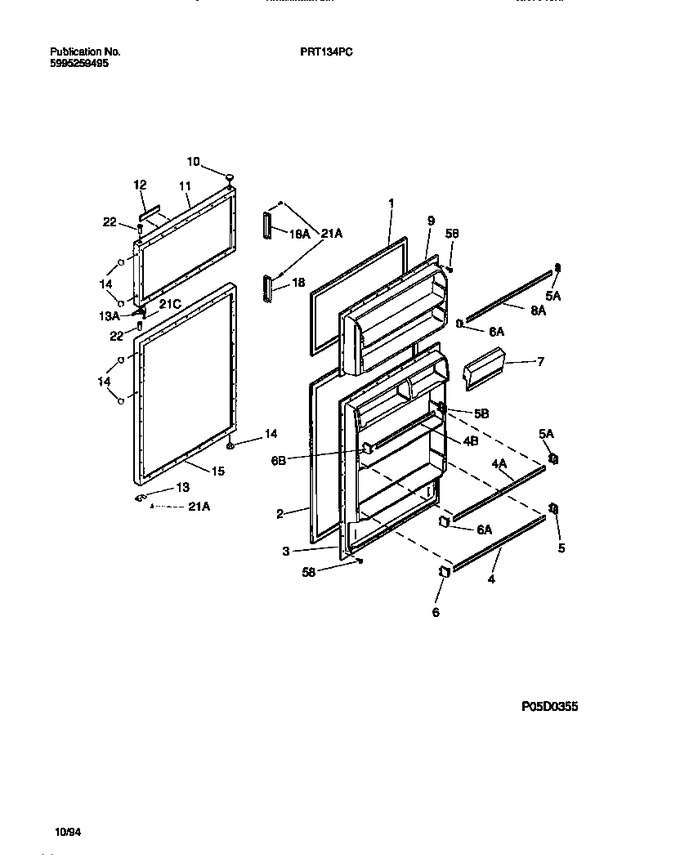

02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	5303271473		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303272863		Panel-inner Door, Refr		Appelez-nous	-
4	3206152		Rack-door, Full-width, Wide		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	3206149		Door-dairy, Rh		Appelez-nous	-
9	5303302458		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916783		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	3206159		Nameplate Assy		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917075		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	3206148		Handle-door		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*75720	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12B	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
18A	3206158		Handle-door		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
4A	5303270904		Rack-door		Appelez-nous	-
4B	5303272864		Rack-door		Appelez-nous	-
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5B	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6B	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-
8A	3206164		Rack-door, Full-width, Narrow		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
