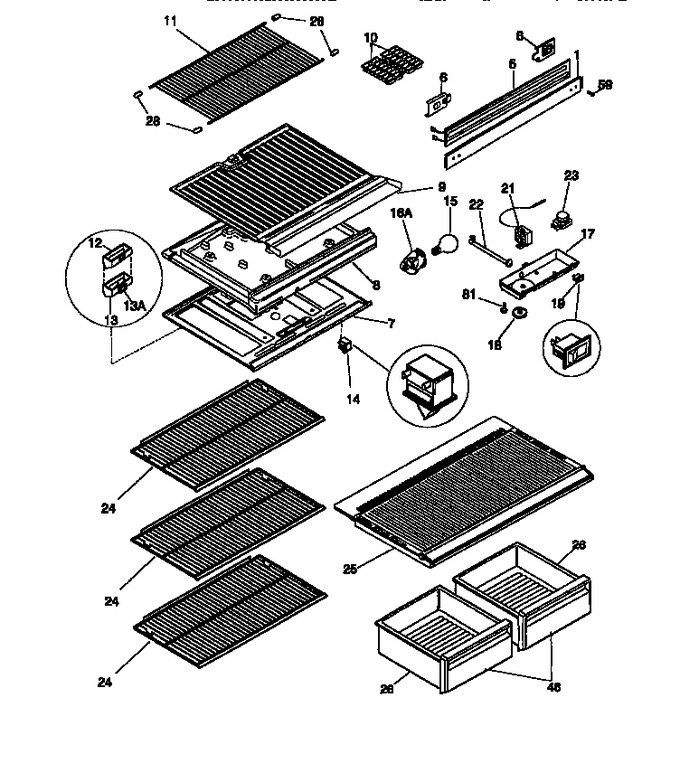

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218430711 | Mullion, Almond |
|
$ 65.59 | |||||
| 5 | 218271401 | Heater-mullion |
|
$ 135.66 | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 3206128 | Top Panel-refr |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 8 | 3206127 | Harness, Wiring, Control/ Divider (ni) |
|
- | |||||
| 8 | 3205266 | Protector, Edge (ni) |
|
$ 80.09 | |||||
| 8 | 3206131 | Divider, Styrofoam |
|
- | |||||
| 9 | 3206132 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303283112 | Shelf, Freezer, Fixed/ Flat, Full Width, Wire |
|
- | |||||
| 12 | 5303001449 | Seal, Air Deflector (incl. In Item 12) (ni) |
|
$ 2.12 | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 3206130 | Box-control |
|
- | |||||
| 17 | 5308016567 | Nut, Anchor (ni) |
|
- | |||||
| 18 | 5303209251 | Knob-temp Control |
|
- | |||||
| 19 | 3206129 | Switch, Energy Saver, Rocker |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 21 | 5303302297 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 24 | 5303283111 | Shelf, Sliding, Wire, Refr Section |
|
$ 27.20 | |||||
| 25 | 5303283113 | Cover-crisper Pan, With Beam |
|
$ 366.03 | |||||
| 26 | 3206212 | Pan-crisper |
|
- | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 46 | 5303306301 | Front, Crisper Pan |
|
- | |||||
| 59 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 |
