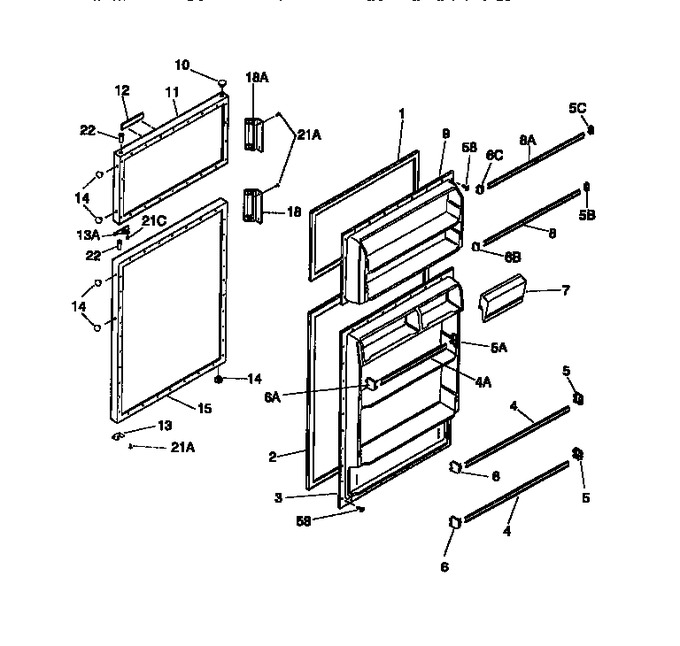

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	3206154		Panel-inner Door, Refr		Appelez-nous	-
4	3206152		Rack, Door, 23.00`` X 1.62``		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	3206149		Door, Dairy		Appelez-nous	-
8	3206163		Rack, Door, 22.62`` X 1.62``		Appelez-nous	-
9	3206160		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916783		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	3206159		Nameplate Assy, W/ Mtg Tape		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916778		Panel-refr Door, White		Appelez-nous	-
18	3206148		Handle-door		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
18A	3206158		Handle-door		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
4A	3206155		Rack, Door, 12.88`` X 1.12``		Appelez-nous	-
58A	5303917276		Insulation, Door, Fiberglass, (bulk) (ni)				$ 330.91
5A	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
5B	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
5C	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
6A	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-
6B	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
6C	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
8A	3206164		Rack, Door, 22.59`` X 1.12``		Appelez-nous	-
