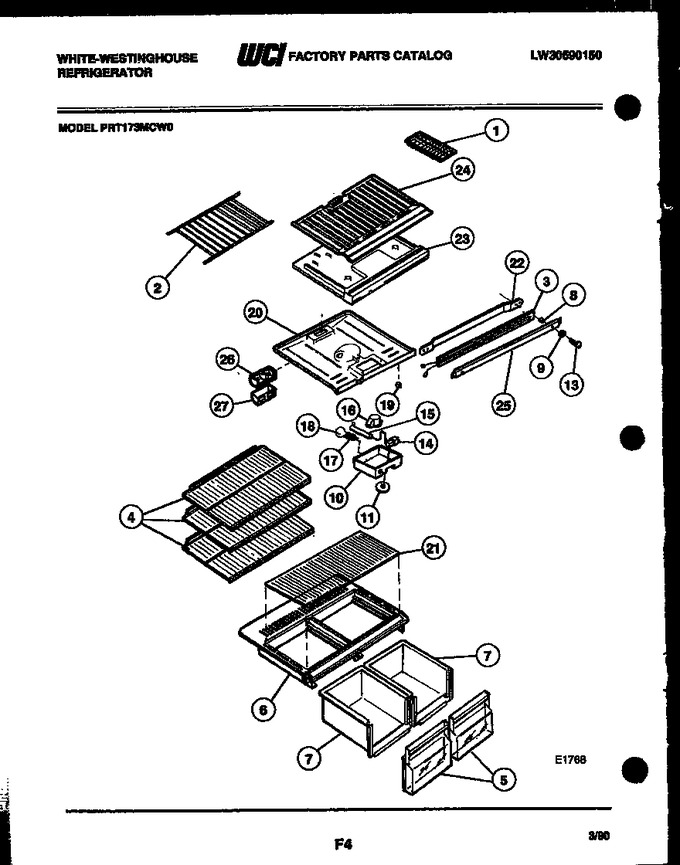

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001324		Ice Tray (2)		Appelez-nous	-
2	5317705901		Shelf-freezer		Appelez-nous	-
3	3206120		Heater-mullion		Appelez-nous	-
4	3206179		Shelf-refrigerator (3)		Appelez-nous	-
5	3206181		Front-crisper Pan (2)		Appelez-nous	-
6	3206183		Cover-crisper		Appelez-nous	-
7	3206180		Pan-crisper, (2)				$ 155.70
8	5303206753		Spacer-mullion (2)		Appelez-nous	-
9	5308003607		Washer, No. 10 Steel (2)				$ 1.00
10	3206320		Control Box		Appelez-nous	-
11	5303201777		Knob - Temperature Control		Appelez-nous	-
13	3206134		Screw-mullion (4)		Appelez-nous	-
14	5303018894		Control-temperature		Appelez-nous	-
15	3018891		Hsg-cont Cap Tube		Appelez-nous	-
16	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
17	218906802		Light Socket   (Replaces: 5308000815)				$ 17.72
18	5303001179		Light Bulb		Appelez-nous	-
19	5309918806		Light Switch			Immediately	$ 21.97
20	3206185		Top-refrigerator		Appelez-nous	-
21	3206182		Insert-crisper Cover		Appelez-nous	-
22	5303207247		Strap-mullion Mtg		Appelez-nous	-
23	3206186		Divider, Styrofoam		Appelez-nous	-
24	3206187		Bottom-freezer		Appelez-nous	-
25	3206121		Mullion, White		Appelez-nous	-
26	3204206		Air Deflector		Appelez-nous	-
27	5303001546		Cover - Air Deflector		Appelez-nous	-
10A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
14A	5303001260		Screw				$ 6.73
16A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
20A	5303001380		Screw		Appelez-nous	-
23A	5303210082		Wiring Harness-divider (non-illustrated)		Appelez-nous	-
23B	3205266		Edge Protector (non-illustrated)				$ 80.09
2A	5304509705		Grommet-shelf Mtg-rh (2) (non-illustrated)   (Replaces: 5303001609)				$ 10.01
2B	5304500407		Grommet-shelf Mtg-lh (2) (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
