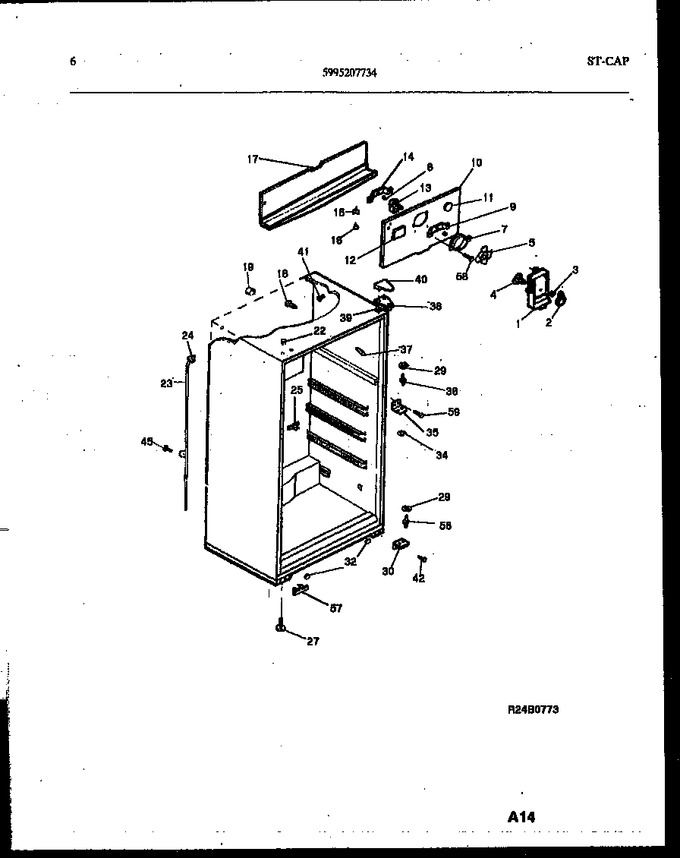

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202336 | Trim, Cabinet Corner, White, (4) |
|
- | |||||
| 38 | 3206100 | Bracket-upper Hinge |
|
- | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 3206101 | Cover-upper Hinge, White |
|
$ 49.25 | |||||
| 41 | 5304509705 | Grommet-shelf Mtg, Rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 42 | 3206143 | Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4) |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 56 | 5303001321 | Pin-lower Hinge |
|
$ 17.25 | |||||
| 57 | 3206135 | Cover-lwr Hng Screw |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 3206134 | Screw-hng/mull Mtg,acorn Hx Wsh Hd,10-24(23)x1 |
|
- | |||||
| *50812 | 5308016571 | Button Plug-liner |
|
$ 4.79 | |||||
| 38A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 38B | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 | |||||
| 41A | 5304500407 | Grommet, Shelf Mtg, Lh (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 |
