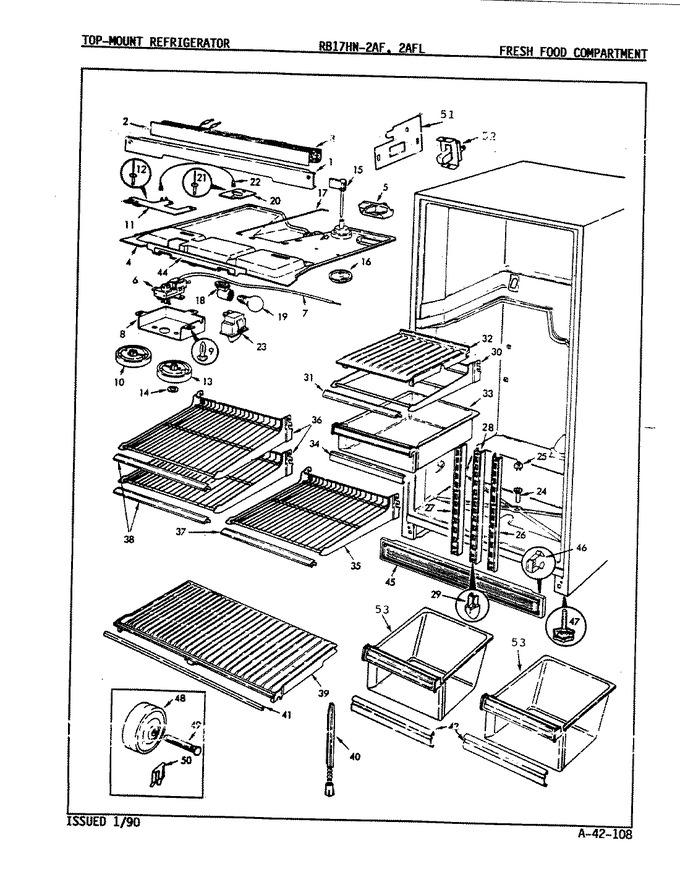

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9986-117 | Screw |
|
- | |||||
| 1 | 65797-1-WW | Divider, Mullion (wht) |
|
- | |||||
| 1 | 65797-1-AM | Divider, Mullion (alm) |
|
- | |||||
| 2 | 60105-7 | Heater Wire |
|
- | |||||
| 3 | 60560-1 | Wire Harness |
|
- | |||||
| 3 | 60140-1 | Insulation |
|
- | |||||
| 4 | 60085-51 | Top, F.f. Compartment |
|
- | |||||
| 5 | 60120-2 | Deflector |
|
- | |||||
| 6 | WP68601-6 | Control, Temperature (Replaces: 66545-1) |
|
Immediately | $ 233.80 | ||||
| 6 | 406013-1 | Screw |
|
- | |||||
| 7 | 4008-12 | Plastic Tube |
|
- | |||||
| 8 | 60083-1 | Cover, Temperature Control |
|
- | |||||
| 8 | 405012-1 | Screw |
|
- | |||||
| 9 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 9 | 29675-22 | Ground Wire |
|
- | |||||
| 10 | 60061-1 | Knob |
|
- | |||||
| 11 | 60147-1 | Bracket, Control |
|
- | |||||
| 12 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 13 | 60061-3 | Knob |
|
- | |||||
| 14 | 420092-900 | Washer, Spring |
|
- | |||||
| 15 | 66609-1 | Damper |
|
- | |||||
| 16 | 60082-3 | Crank, Frzr Control |
|
- | |||||
| 17 | 60078-3 | Rod |
|
- | |||||
| 18 | 60577-1 | Socket, Light |
|
- | |||||
| 19 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 20 | 60147-2 | Bracket, Light Socket |
|
- | |||||
| 21 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 22 | 29675-28 | Ground Wire |
|
- | |||||
| 23 | W11384469 | Switch, Light (Replaces: 55732-1) |
|
Immediately | $ 33.51 | ||||
| 23 | 54653-28 | Cord, Switch/light |
|
- | |||||
| 24 | 54531-8 | Grommet |
|
- | |||||
| 25 | 65039-1 | Cap, Drain Tube |
|
- | |||||
| 26 | 60096-7 | Rail, Shelf Support (lt) |
|
- | |||||
| 27 | 60096-8 | Rail, Shelf Support (rt) |
|
- | |||||
| 28 | 60096-9 | Rail, Shelf Support (center) |
|
- | |||||
| 29 | 60340-1 | End Cap, Center Rail |
|
- | |||||
| 30 | 60416-9 | Cantilever Shelf (meat) |
|
- | |||||
| 31 | 68136-16 | Trim, Cantilever Shelf Front |
|
- | |||||
| 32 | 5304527842 | Cover (Replaces: 60075-10) |
|
Immediately | $ 16.13 | ||||
| 33 | 66516-1 | Pan, Meat |
|
- | |||||
| 34 | 60132-68 | Handle |
|
- | |||||
| 35 | 60417-12 | Shelf |
|
- | |||||
| 36 | 60417-13 | Cantilever Shelf (split) |
|
- | |||||
| 37 | 68136-16 | Trim, Cantilever Shelf Front |
|
- | |||||
| 38 | 68136-17 | Trim, Cantilever Shelf Front |
|
- | |||||
| 39 | 66834-1 | Shelf, Crisper |
|
- | |||||
| 40 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) |
|
$ 3.35 | |||||
| 41 | 60454-1 | Trim |
|
- | |||||
| 42 | 60457-469 | Pan, Crisper |
|
- | |||||
| 43 | 60132-66 | Handle |
|
- | |||||
| 44 | 60571-43 | Insert |
|
- | |||||
| 45 | 60138-18 | Kickplate |
|
- | |||||
| 46 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 46 | 60100-1 | Clip, Kickplate |
|
$ 5.85 | |||||
| 47 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 | ||||
| 48 | 29834-2 | Wheel |
|
- | |||||
| 49 | 29835-2 | Pin, Wheel |
|
- | |||||
| 50 | 60216-1 | Clip |
|
- | |||||
| 51 | 60583-1 | Bracket, Switch |
|
- | |||||
| 52 | 60585-1 | Switch, Mullion Heater |
|
- | |||||
| 53 | 60457-465 | Pan, Crisper |
|
- |
