02 - Door Parts

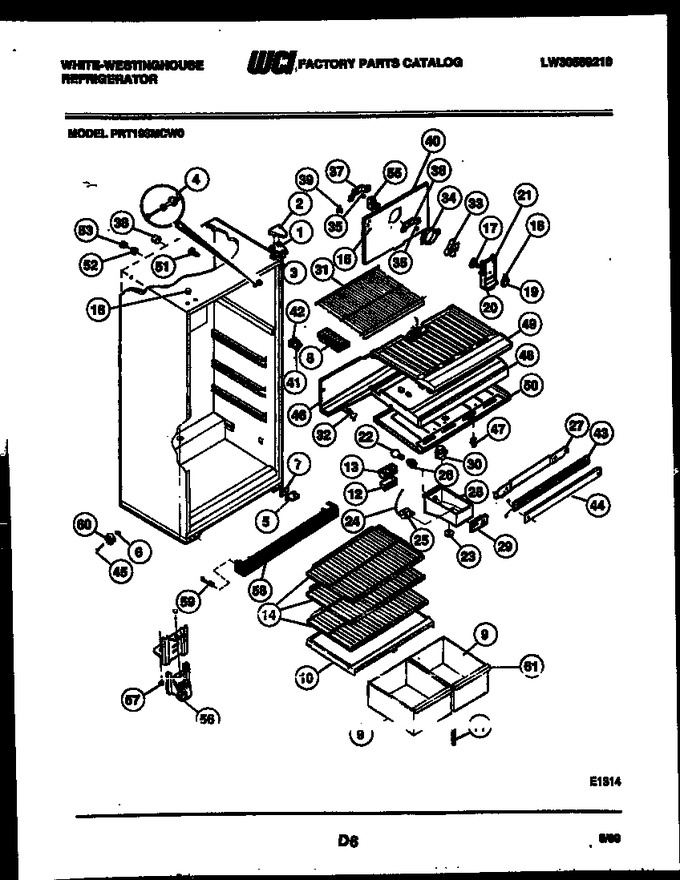

03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183714 | Hinge |
|
- | |||||
| 2 | G183558-11 | Cover Hinge, Almond |
|
- | |||||
| 3 | G183861 | Shim |
|
- | |||||
| 4 | G163105 | Support (8) |
|
- | |||||
| 5 | 3202834 | Bracket-hinge |
|
- | |||||
| 6 | G162662 | Nut, Push |
|
- | |||||
| 7 | G162903 | Shim |
|
- | |||||
| 8 | G156376-01 | Tray-ice (2) |
|
- | |||||
| 9 | 3206311 | Pan-lh |
|
- | |||||
| 9 | 3206316 | Pan-rh |
|
- | |||||
| 10 | G162840-01 | Cover-pan |
|
- | |||||
| 11 | G166310-01 | Support-cover |
|
- | |||||
| 12 | G162178 | Cover, Deflector |
|
- | |||||
| 13 | 3204206 | Deflector - Air |
|
- | |||||
| 14 | G178511-02 | Shelf-full (3) |
|
- | |||||
| 15 | G162827-18 | Button-decorative |
|
- | |||||
| 16 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 16 | G162549-01 | Service Cord |
|
- | |||||
| 17 | G162661 | Damper |
|
- | |||||
| 18 | G162662 | Nut, Push |
|
- | |||||
| 19 | 3206109 | Knob-damper Control |
|
- | |||||
| 20 | 3206318 | Cover - Fan |
|
- | |||||
| 21 | 3206362 | Label-fan Cover |
|
- | |||||
| 22 | K1186186 | Bulb, Light |
|
- | |||||
| 23 | 3201777 | Knob-cold Control |
|
- | |||||
| 24 | G142176-11 | Tube Plastic |
|
- | |||||
| 25 | 3018894 | Control-cold |
|
- | |||||
| 26 | G168302 | Socket Light |
|
- | |||||
| 27 | G165781 | Strap, Mullion |
|
- | |||||
| 28 | 3206320 | Control Box |
|
- | |||||
| 29 | G180694 | Label-control Box |
|
- | |||||
| 30 | G187484 | Timer-defrost |
|
- | |||||
| 30 | G105289 | Screw |
|
- | |||||
| 31 | G184193-02 | Shelf-freezer |
|
- | |||||
| 32 | G155529-02 | Drain Tube |
|
- | |||||
| 33 | G174705 | Fan |
|
- | |||||
| 34 | G167217 | Ring-orifice |
|
- | |||||
| 35 | G157666 | Bushing (2) |
|
- | |||||
| 36 | 3205118 | Bracket-front |
|
- | |||||
| 37 | 3205119 | Bracket-rear |
|
- | |||||
| 38 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 39 | G164571 | Bracket |
|
- | |||||
| 40 | G162050-02 | Cover, Coil |
|
- | |||||
| 41 | G163207 | Bracket, Hinge |
|
- | |||||
| 42 | G142220 | Pin |
|
- | |||||
| 43 | 3018916 | Heater-mullion |
|
- | |||||
| 44 | 3200370 | Mullion-almond |
|
- | |||||
| 45 | G162809 | Pin Roller (2) |
|
- | |||||
| 46 | G177534 | Trough Drain |
|
- | |||||
| 47 | G187200 | Switch-light |
|
- | |||||
| 48 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 49 | G185912 | Bottom, Freezer |
|
- | |||||
| 50 | 3018993 | Top - Refrigerator |
|
- | |||||
| 51 | G163669 | Support, Cover (2) |
|
- | |||||
| 52 | G174733 | Ferrule, Inner |
|
- | |||||
| 53 | G174734 | Ferrule Outer |
|
- | |||||
| 54 | G101747 | Clamp |
|
- | |||||
| 55 | G173301 | Motor Fan |
|
- | |||||
| 55 | G162892-01 | Button Plug Liner (2) (non-illustrated) |
|
- | |||||
| 56 | G186731 | Roller Assembly (2) |
|
- | |||||
| 57 | G145103 | Bolt (2) |
|
- | |||||
| 58 | G163080-02 | Toe Grill |
|
- | |||||
| 59 | G162994 | Clip (2) |
|
- | |||||
| 60 | G183407 | Roller, Rear (2) |
|
- | |||||
| 61 | 3206317 | Trim Pan-rh |
|
- | |||||
| 61 | 3206308 | Trim Pan-lh |
|
- | |||||
| 25A | G107080 | Screw |
|
- | |||||
| 3A | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 40A | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 42A | G183103 | Screw (4) (non-illustrated) |
|
- | |||||
| 42B | G164355 | Washer-nylon (non-illustrated) |
|
- | |||||
| 4A | G187257 | Screw (8) (non-illustrated) |
|
- | |||||
| 55A | G187599 | Button Plug Liner (4) (non-illustrated) |
|
- | |||||
| 55B | G162683 | Shim-center Hinge (non-illustrated) |
|
- | |||||
| 55C | G179797 | Plate-tapping (2) (non-illustrated) |
|
- | |||||
| 7A | G181020 | Screw-hinge (2) (non-illustrated) |
|
- |
