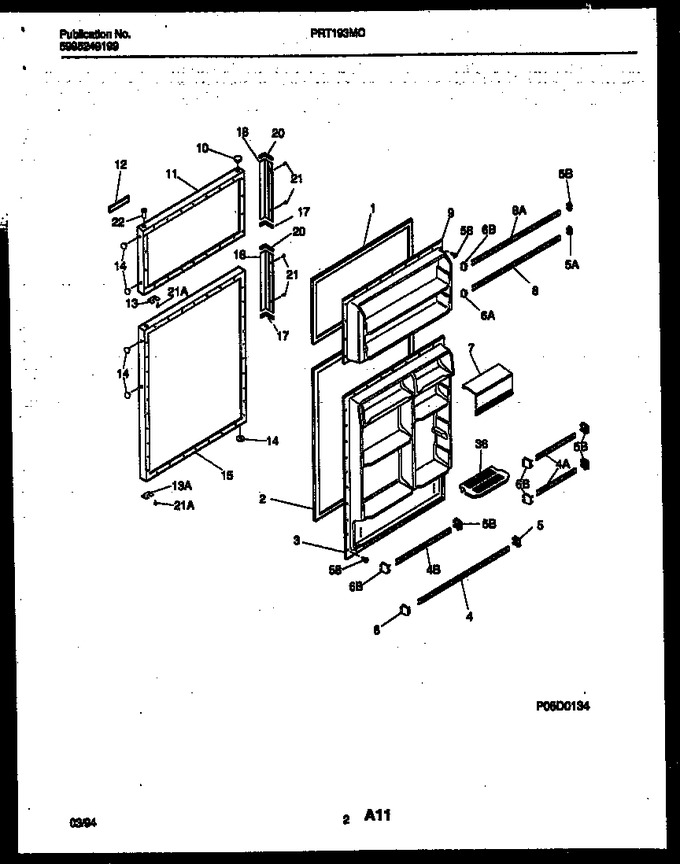

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018791 | Gasket-frzr Door, Magnetic, White |
|
$ 130.56 | |||||
| 2 | 5303018792 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 3206357 | Panel, Inner Door, Refr |
|
- | |||||
| 4 | 5303206518 | Rack-door, Long/wide |
|
- | |||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 215918200 | Door-dairy |
|
- | |||||
| 8 | 3206289 | Rack, Door, Long/wide |
|
- | |||||
| 9 | 3206284 | Panel, Inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917018 | Panel, Frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 3206159 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917021 | Panel, Refr Door, Almond |
|
- | |||||
| 17 | 5300177143 | Handle End |
|
- | |||||
| 18 | 5303277266 | Handle, Door, 16`` Long, W/end Caps |
|
- | |||||
| 20 | 5300177142 | Handle End |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 36 | 3206189 | Shelf - Flip-up |
|
$ 50.61 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *93843 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340760 | Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated) |
|
- | |||||
| 13A | 5308000255 | Door Stop-frzr |
|
$ 42.20 | |||||
| 17A | 5300179271 | Trim-handle End (non-illustrated) |
|
- | |||||
| 18A | 5300177144 | Clip-door Handle (non-illustrated) |
|
- | |||||
| 20A | 5300179270 | Trim-handle End |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4A | 3206191 | Rack-door, Short/narrow |
|
- | |||||
| 4B | 3206300 | Rack, Door, Medium/narrow |
|
- | |||||
| 5A | 3206161 | Support-door Rack, Rh |
|
- | |||||
| 5B | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 6A | 3206162 | Support-door Rack, Lh |
|
- | |||||
| 6B | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 | ||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3206288 | Rack, Door, Long/narrow |
|
- |
